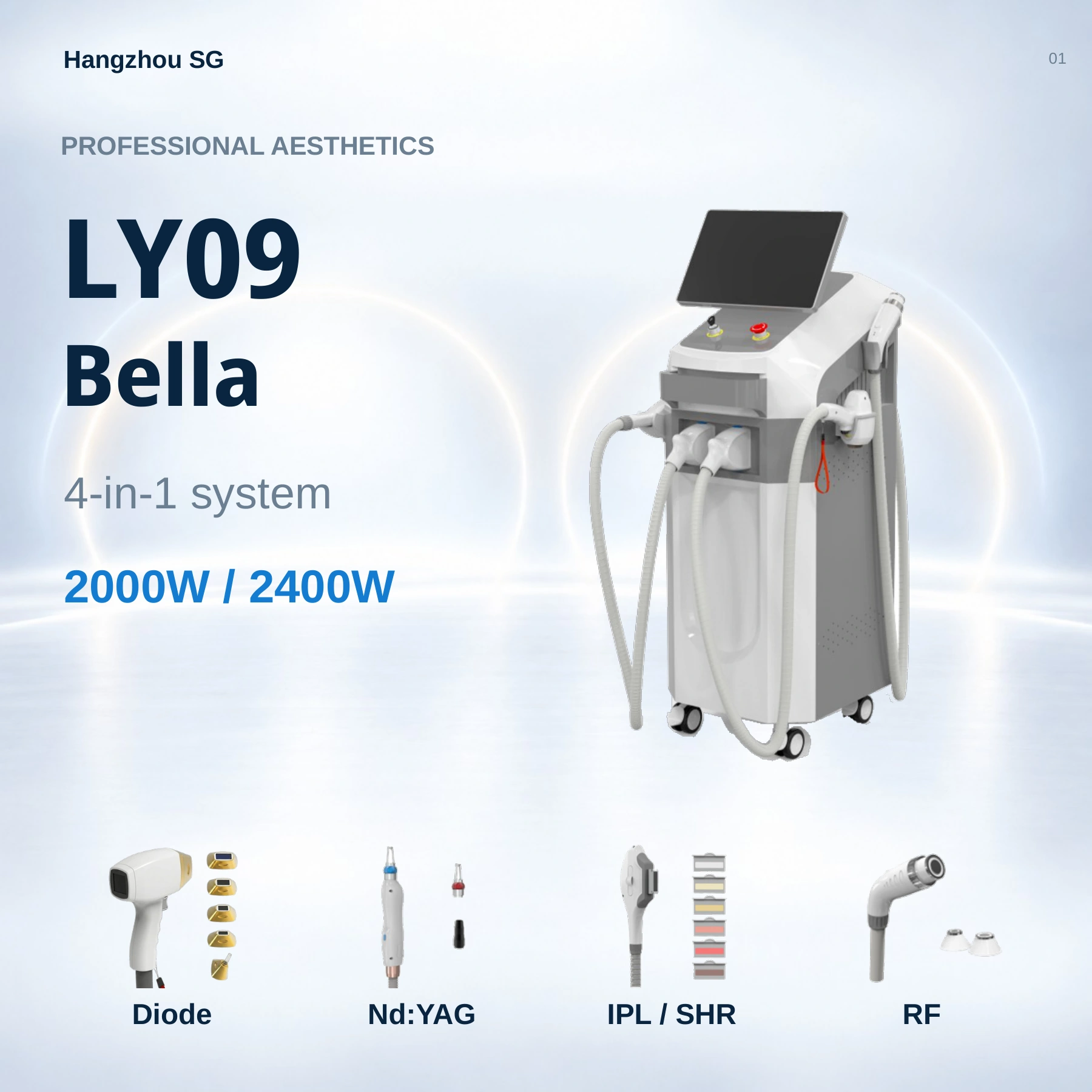

LY09 Bella 4-in-1 Diode, Nd:YAG, IPL/SHR & RF System

LY09 Bella

Catalog page 1

description

PROFESSIONAL AESTHETICS LY09 Bella 4-in-1 system 2000W / 2400W Diode Nd:YAG IPL / SHR RF

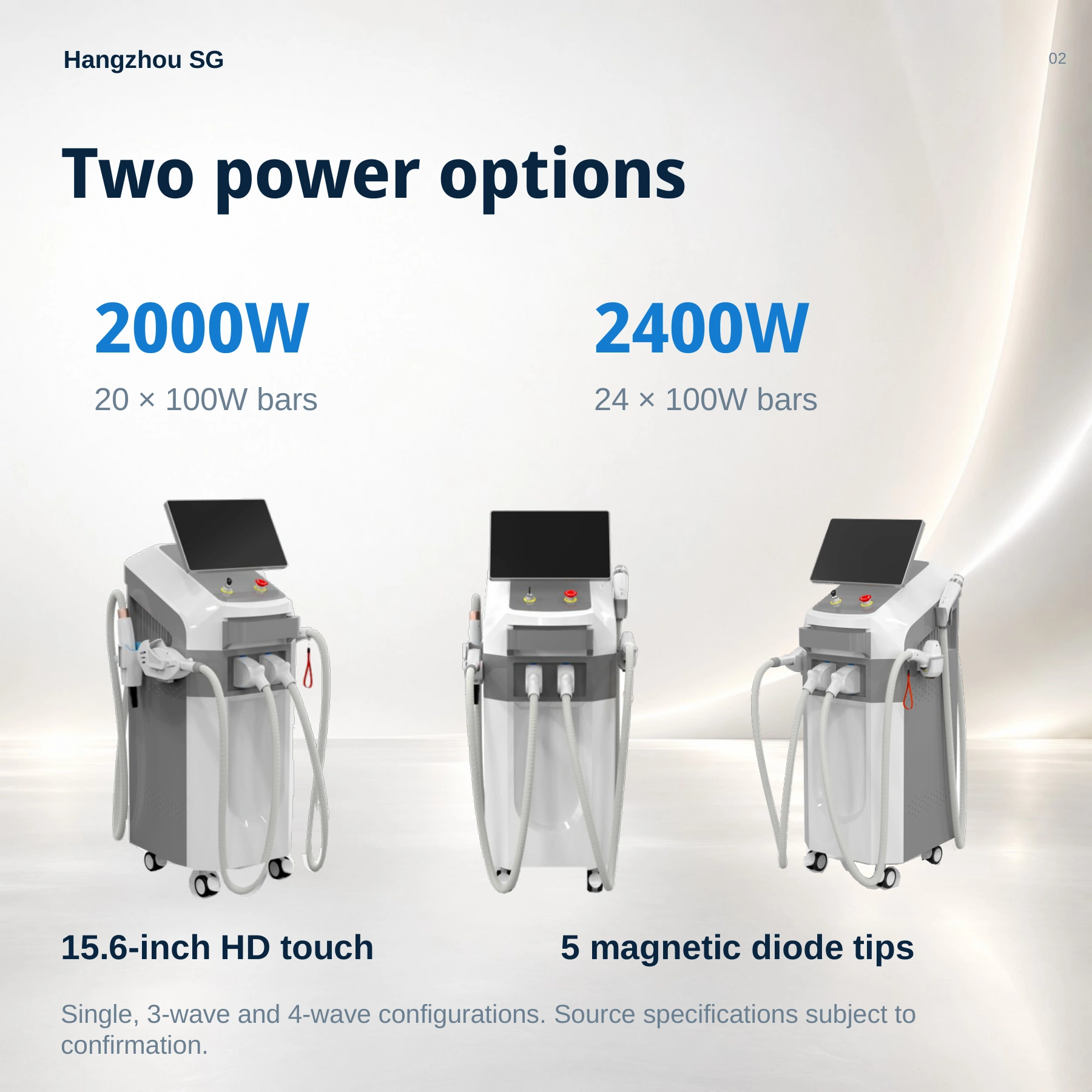

Two power options

Catalog page 2

description

Two power options 2000W 20 × 100W bars 2400W 24 × 100W bars 15.6-inch HD touch 5 magnetic diode tips Single, 3-wave and 4-wave configurations. Source specifications subject to confirmation.

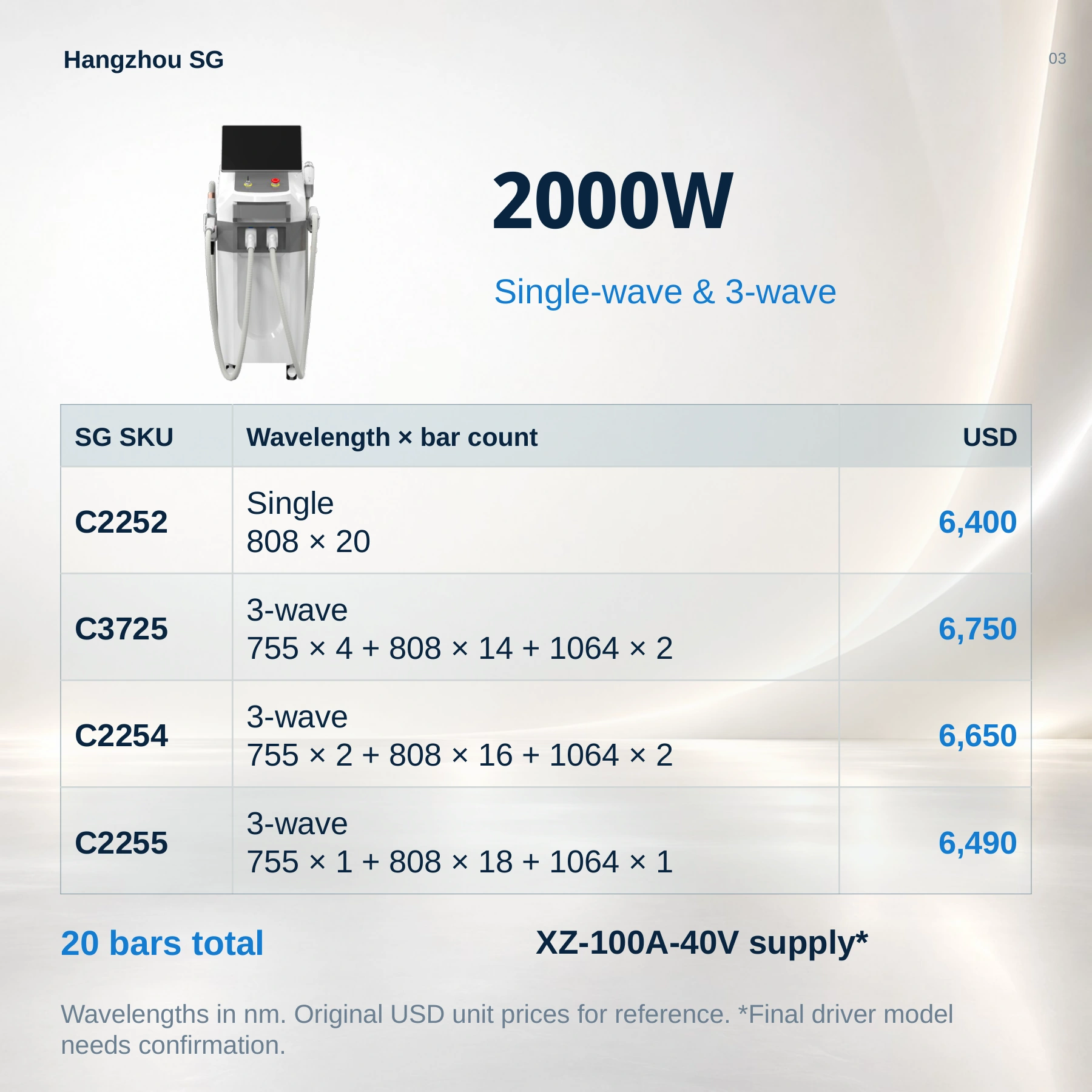

C2252

Catalog page 3

Module power

2000W

Wavelength × bar count (nm)

808 × 20

Wave configuration

Single

Unit price (USD, source reference)

6,400

Bars total

20

Source-listed supply

XZ-100A-40V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

C3725

Catalog page 3

Module power

2000W

Wavelength × bar count (nm)

755 × 4 + 808 × 14 + 1064 × 2

Wave configuration

3-wave

Unit price (USD, source reference)

6,750

Bars total

20

Source-listed supply

XZ-100A-40V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

C2254

Catalog page 3

Module power

2000W

Wavelength × bar count (nm)

755 × 2 + 808 × 16 + 1064 × 2

Wave configuration

3-wave

Unit price (USD, source reference)

6,650

Bars total

20

Source-listed supply

XZ-100A-40V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

C2255

Catalog page 3

Module power

2000W

Wavelength × bar count (nm)

755 × 1 + 808 × 18 + 1064 × 1

Wave configuration

3-wave

Unit price (USD, source reference)

6,490

Bars total

20

Source-listed supply

XZ-100A-40V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

C2726

Catalog page 4

Module power

2000W

Wavelength × bar count (nm)

755 × 2 + 808 × 14 + 940 × 2 + 1064 × 2

Wave configuration

4-wave

Unit price (USD, source reference)

6,750

Bars total

20

Source-listed supply

XZ-100A-40V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

C2727

Catalog page 4

Module power

2000W

Wavelength × bar count (nm)

755 × 2 + 808 × 15 + 940 × 1 + 1064 × 2

Wave configuration

4-wave

Unit price (USD, source reference)

6,680

Bars total

20

Source-listed supply

XZ-100A-40V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

C2728

Catalog page 4

Module power

2000W

Wavelength × bar count (nm)

755 × 1 + 808 × 17 + 940 × 1 + 1064 × 1

Wave configuration

4-wave

Unit price (USD, source reference)

6,570

Bars total

20

Source-listed supply

XZ-100A-40V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

C3729

Catalog page 5

Module power

2400W

Wavelength × bar count (nm)

808 × 24

Wave configuration

Single

Unit price (USD, source reference)

6,730

Bars total

24

Source-listed supply

XZ-100A-48V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

C3730

Catalog page 5

Module power

2400W

Wavelength × bar count (nm)

755 × 2 + 808 × 20 + 1064 × 2

Wave configuration

3-wave

Unit price (USD, source reference)

6,950

Bars total

24

Source-listed supply

XZ-100A-48V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

C3731

Catalog page 5

Module power

2400W

Wavelength × bar count (nm)

755 × 4 + 808 × 16 + 1064 × 4

Wave configuration

3-wave

Unit price (USD, source reference)

7,180

Bars total

24

Source-listed supply

XZ-100A-48V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

C3732

Catalog page 5

Module power

2400W

Wavelength × bar count (nm)

755 × 1 + 808 × 22 + 1064 × 1

Wave configuration

3-wave

Unit price (USD, source reference)

6,850

Bars total

24

Source-listed supply

XZ-100A-48V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

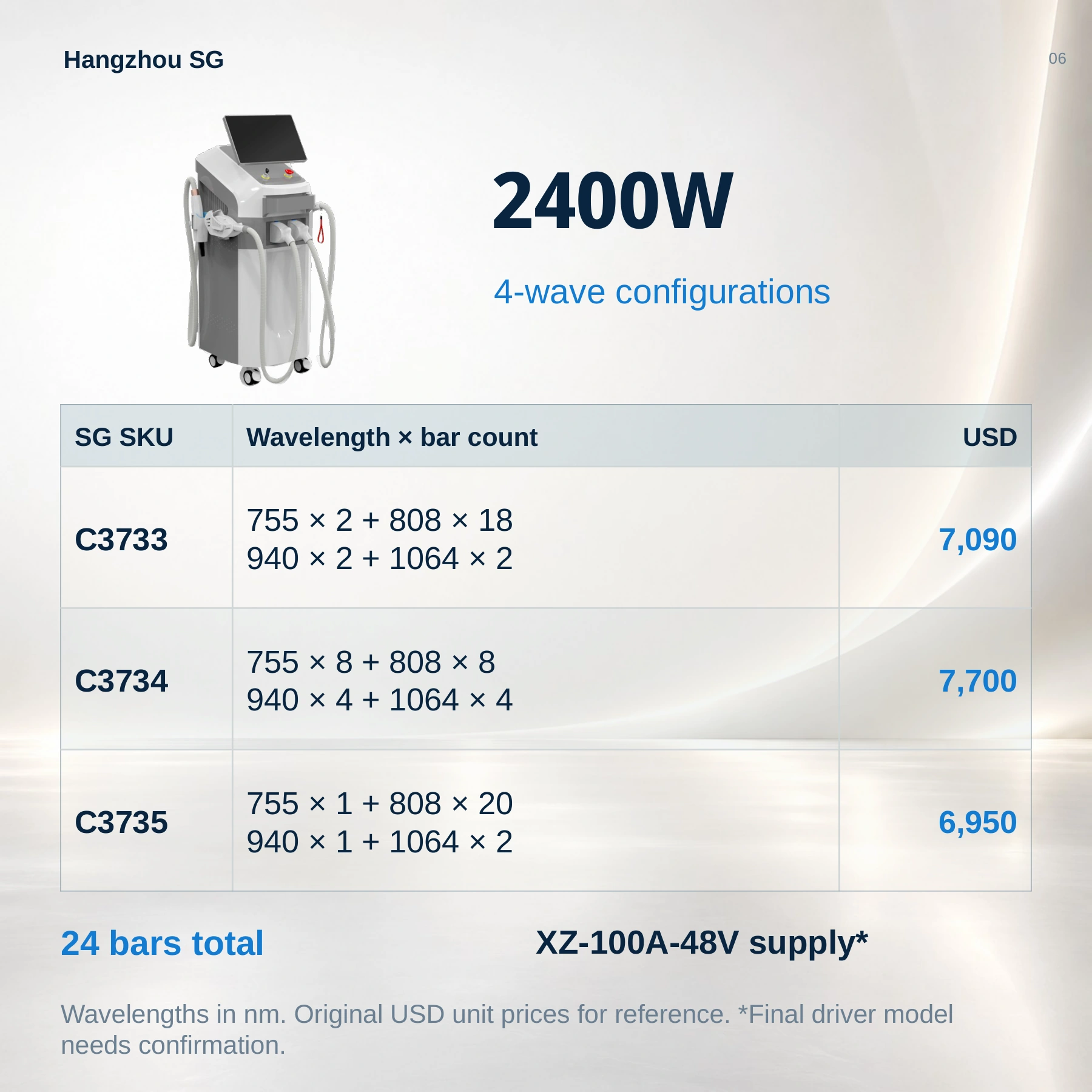

C3733

Catalog page 6

Module power

2400W

Wavelength × bar count (nm)

755 × 2 + 808 × 18 + 940 × 2 + 1064 × 2

Wave configuration

4-wave

Unit price (USD, source reference)

7,090

Bars total

24

Source-listed supply

XZ-100A-48V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

C3734

Catalog page 6

Module power

2400W

Wavelength × bar count (nm)

755 × 8 + 808 × 8 + 940 × 4 + 1064 × 4

Wave configuration

4-wave

Unit price (USD, source reference)

7,700

Bars total

24

Source-listed supply

XZ-100A-48V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

C3735

Catalog page 6

Module power

2400W

Wavelength × bar count (nm)

755 × 1 + 808 × 20 + 940 × 1 + 1064 × 2

Wave configuration

4-wave

Unit price (USD, source reference)

6,950

Bars total

24

Source-listed supply

XZ-100A-48V

Confirmation note

Original USD unit prices for reference. Final driver model needs confirmation.

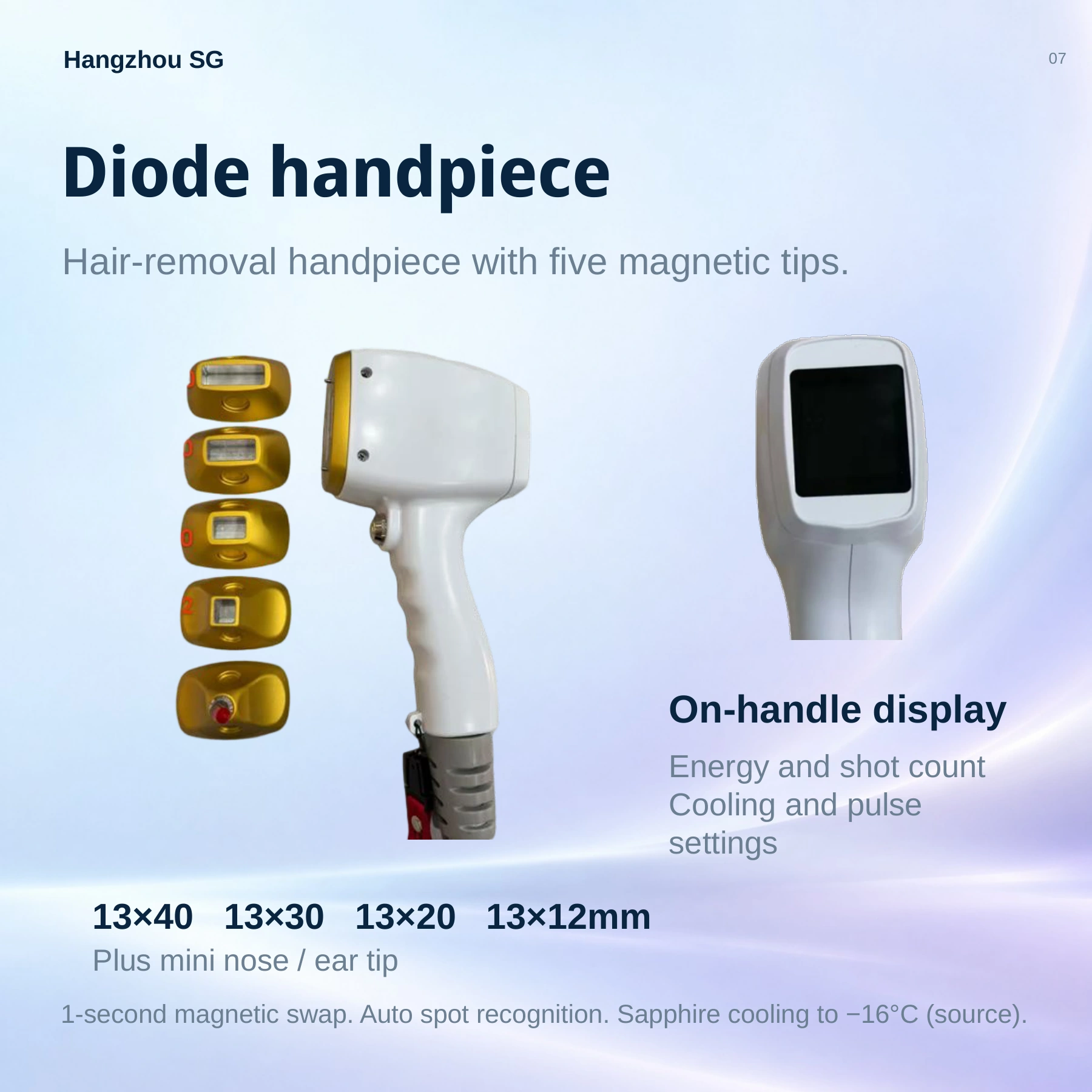

Diode handpiece

Catalog page 7

source-listed; claims not independently verified

details

Diode handpiece Hair-removal handpiece with five magnetic tips. On-handle display Energy and shot count Cooling and pulse settings 13×40 13×30 13×20 13×12mm Plus mini nose / ear tip 1-second magnetic swap. Auto spot recognition. Sapphire cooling to −16°C (source).

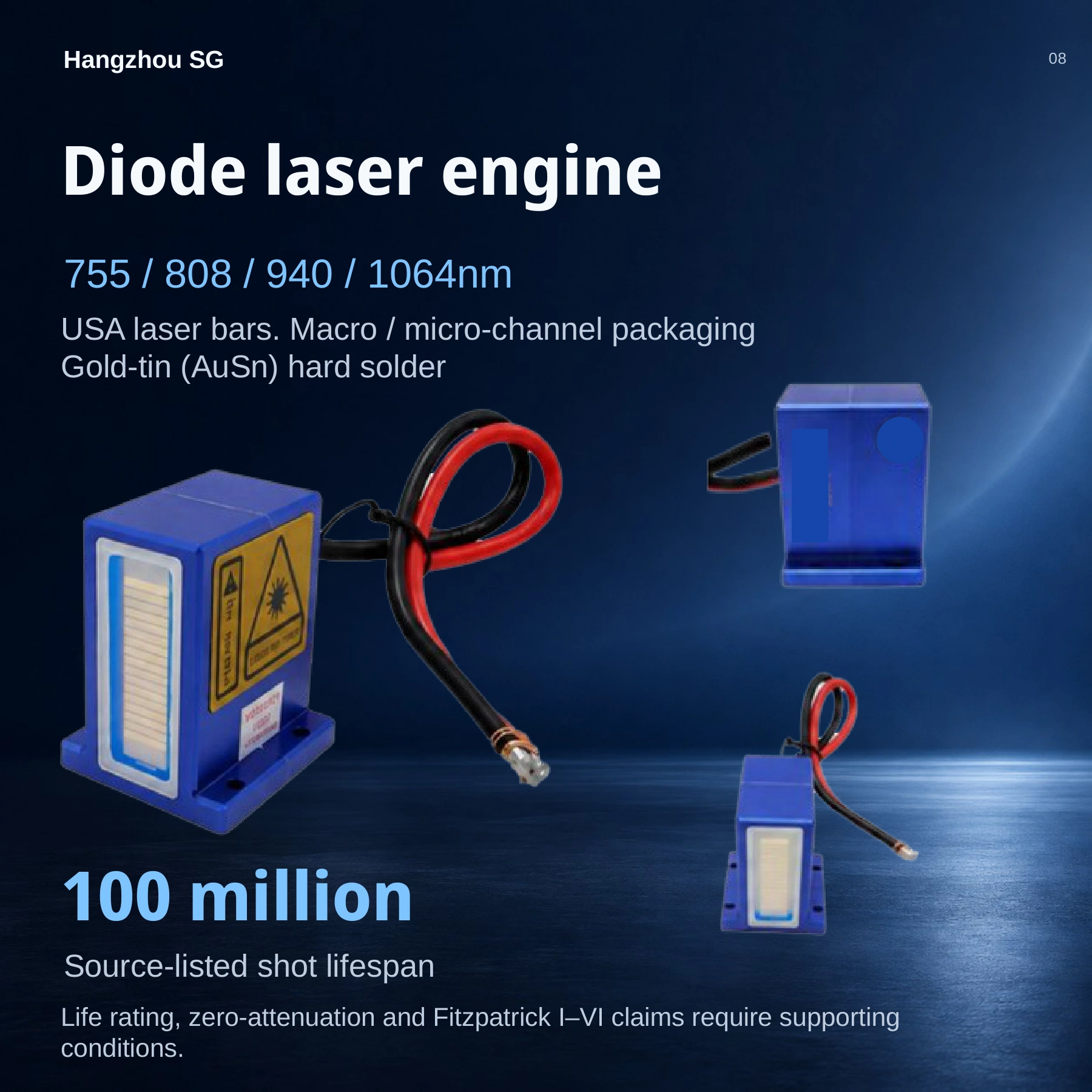

Diode laser engine

Catalog page 8

source-listed; claims not independently verified

details

Diode laser engine 755 / 808 / 940 / 1064nm 100 million Source-listed shot lifespan USA laser bars. Macro / micro-channel packaging Gold-tin (AuSn) hard solder Life rating, zero-attenuation and Fitzpatrick I–VI claims require supporting conditions.

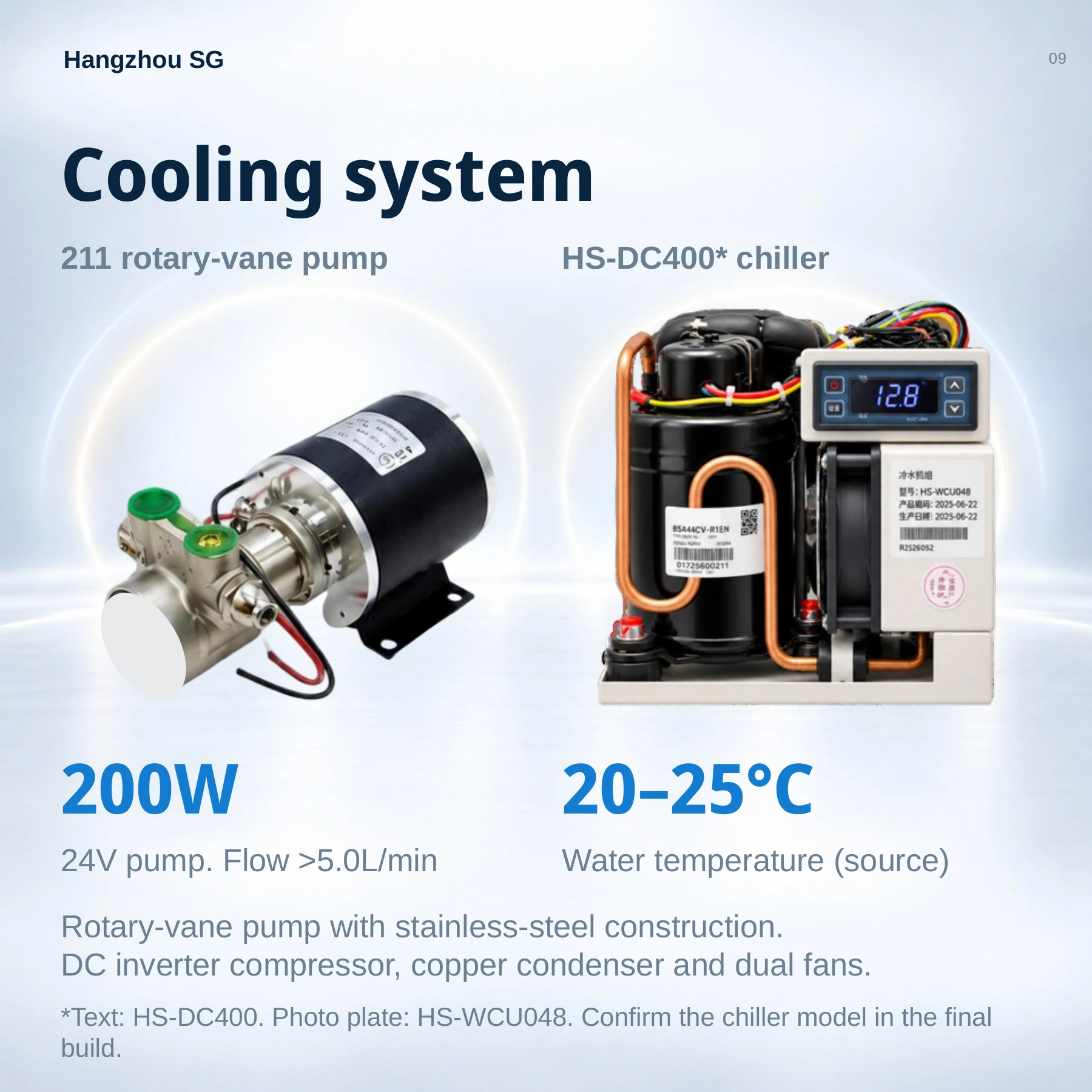

Cooling system

Catalog page 9

source-listed; claims not independently verified

details

Cooling system 211 rotary-vane pump HS-DC400* chiller 200W 24V pump. Flow >5.0L/min 20–25°C Water temperature (source) Rotary-vane pump with stainless-steel construction. DC inverter compressor, copper condenser and dual fans. *Text: HS-DC400. Photo plate: HS-WCU048. Confirm the chiller model in the final build.

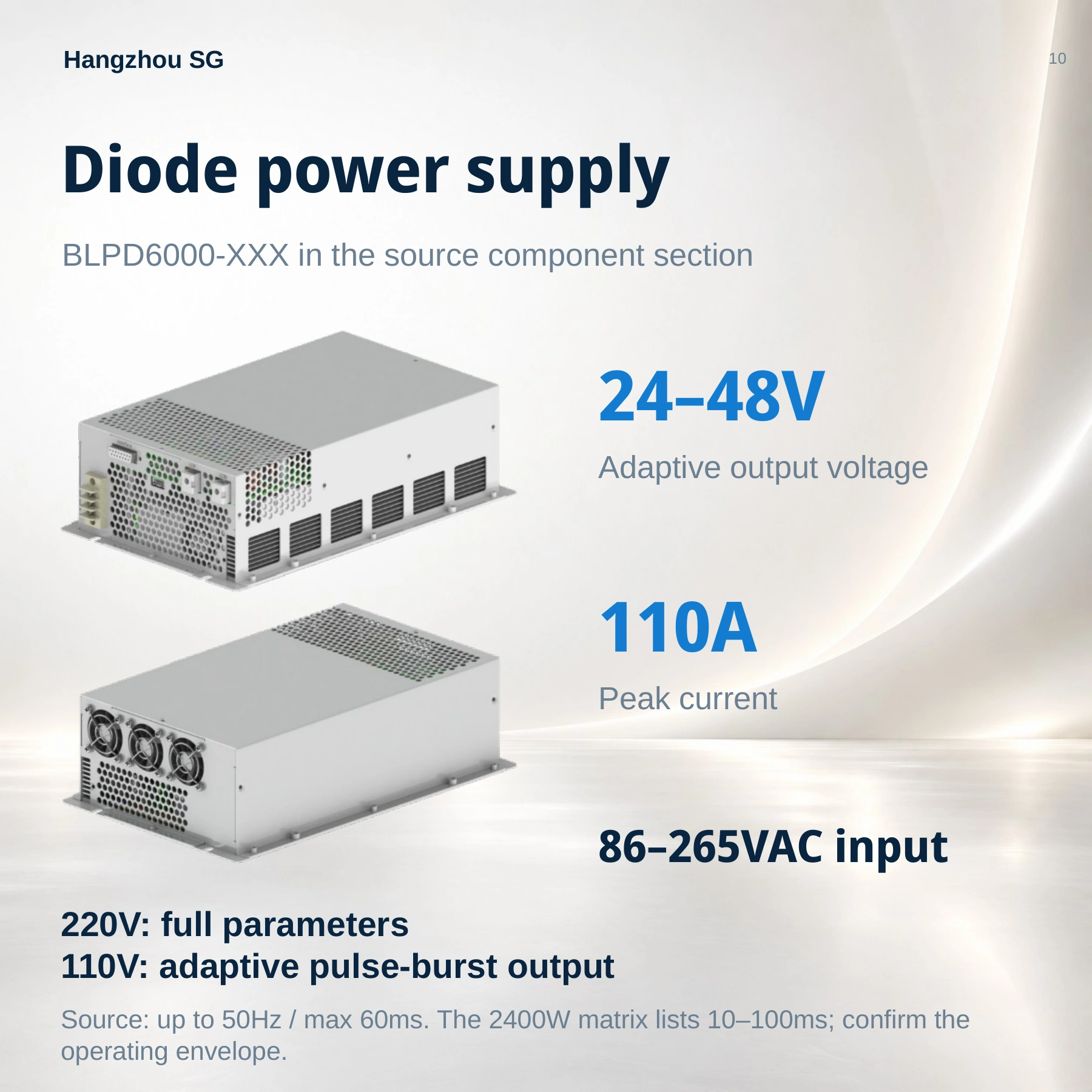

Diode power supply

Catalog page 10

source-listed; claims not independently verified

details

Diode power supply BLPD6000-XXX in the source component section 24–48V Adaptive output voltage 110A Peak current 86–265VAC input 220V: full parameters 110V: adaptive pulse-burst output Source: up to 50Hz / max 60ms. The 2400W matrix lists 10–100ms; confirm the operating envelope.

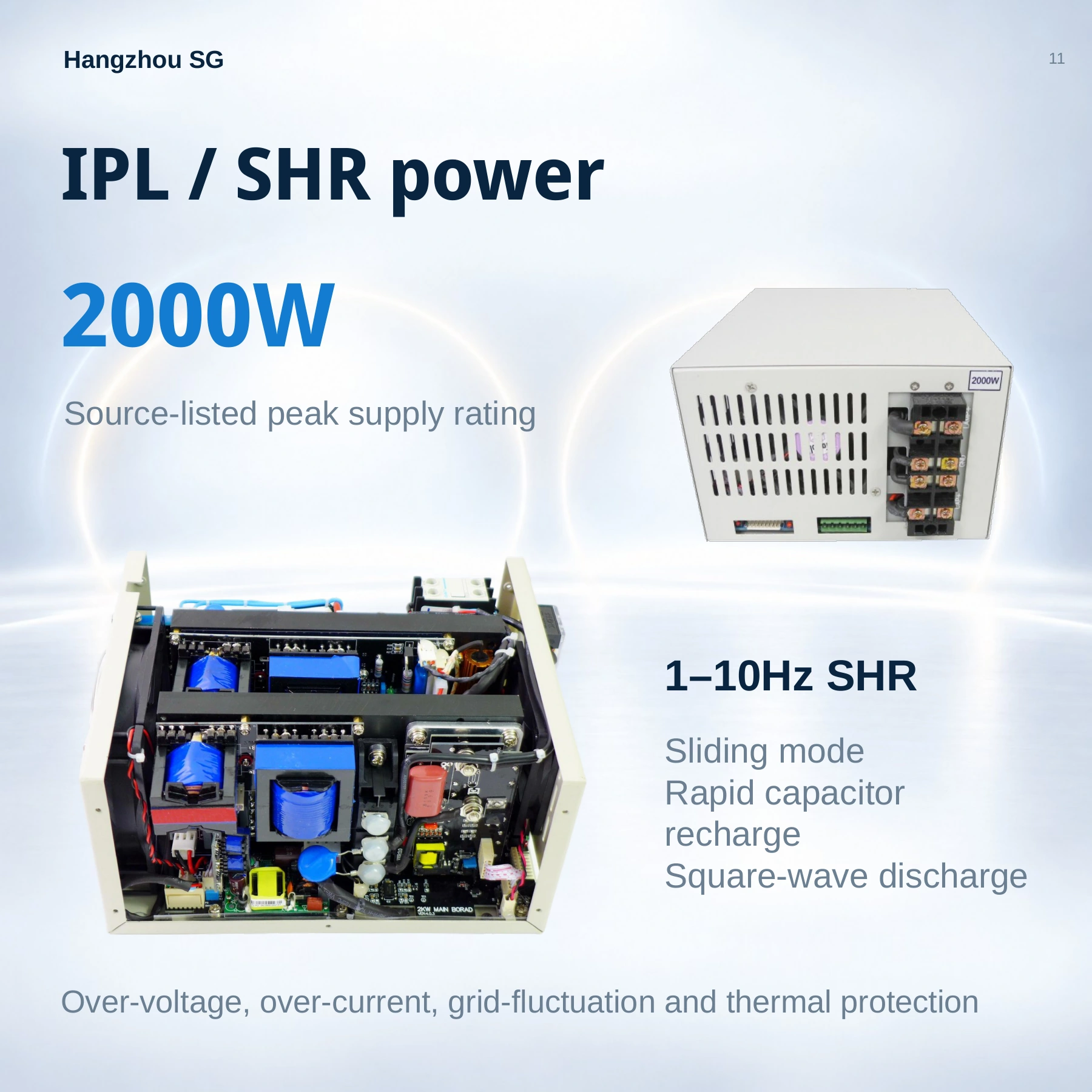

IPL / SHR power

Catalog page 11

source-listed; claims not independently verified

details

IPL / SHR power 2000W Source-listed peak supply rating 1–10Hz SHR Sliding mode Rapid capacitor recharge Square-wave discharge Over-voltage, over-current, grid-fluctuation and thermal protection

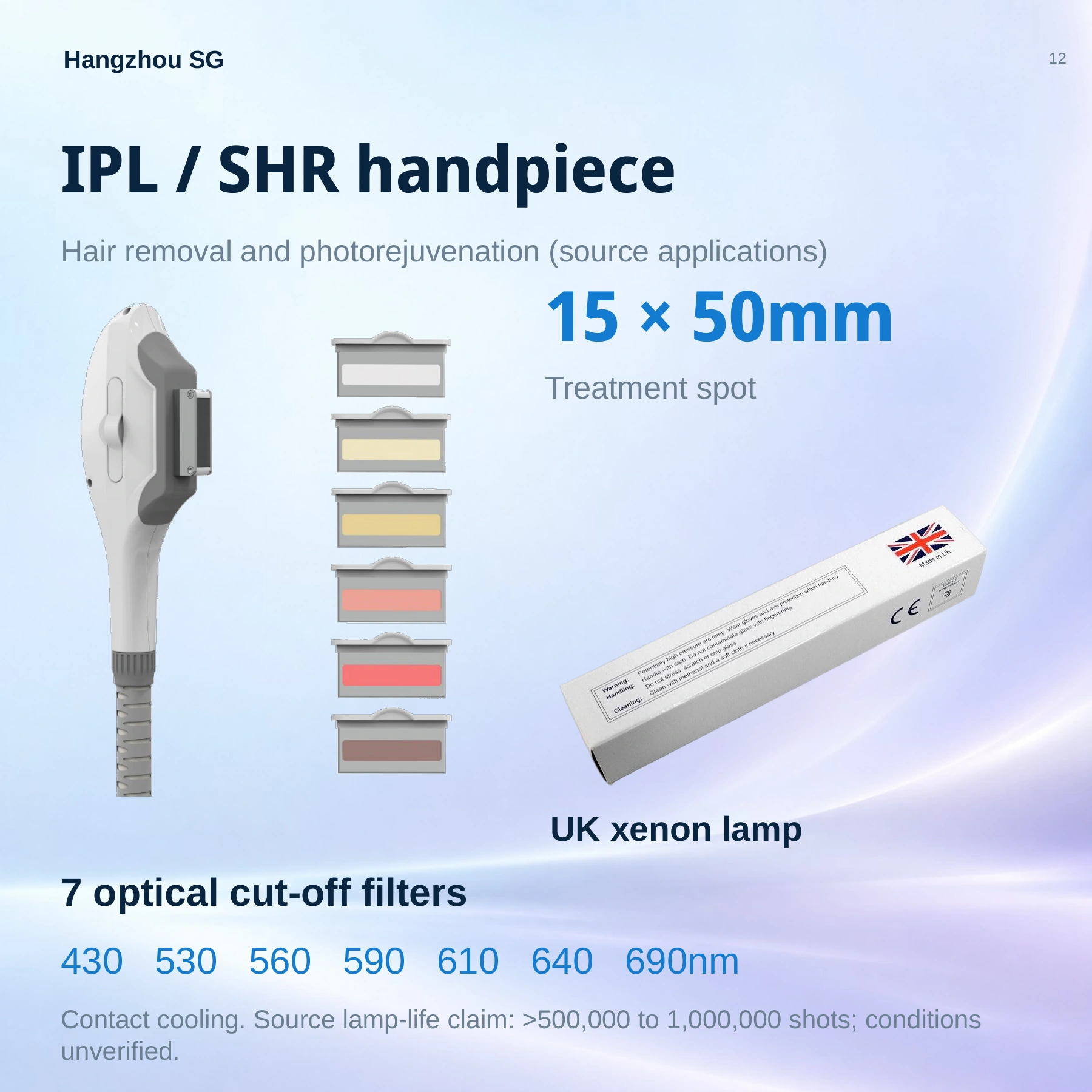

IPL / SHR handpiece

Catalog page 12

source-listed; claims not independently verified

details

IPL / SHR handpiece Hair removal and photorejuvenation (source applications) 15 × 50mm Treatment spot UK xenon lamp 7 optical cut-off filters 430 530 560 590 610 640 690nm Contact cooling. Source lamp-life claim: >500,000 to 1,000,000 shots; conditions unverified.

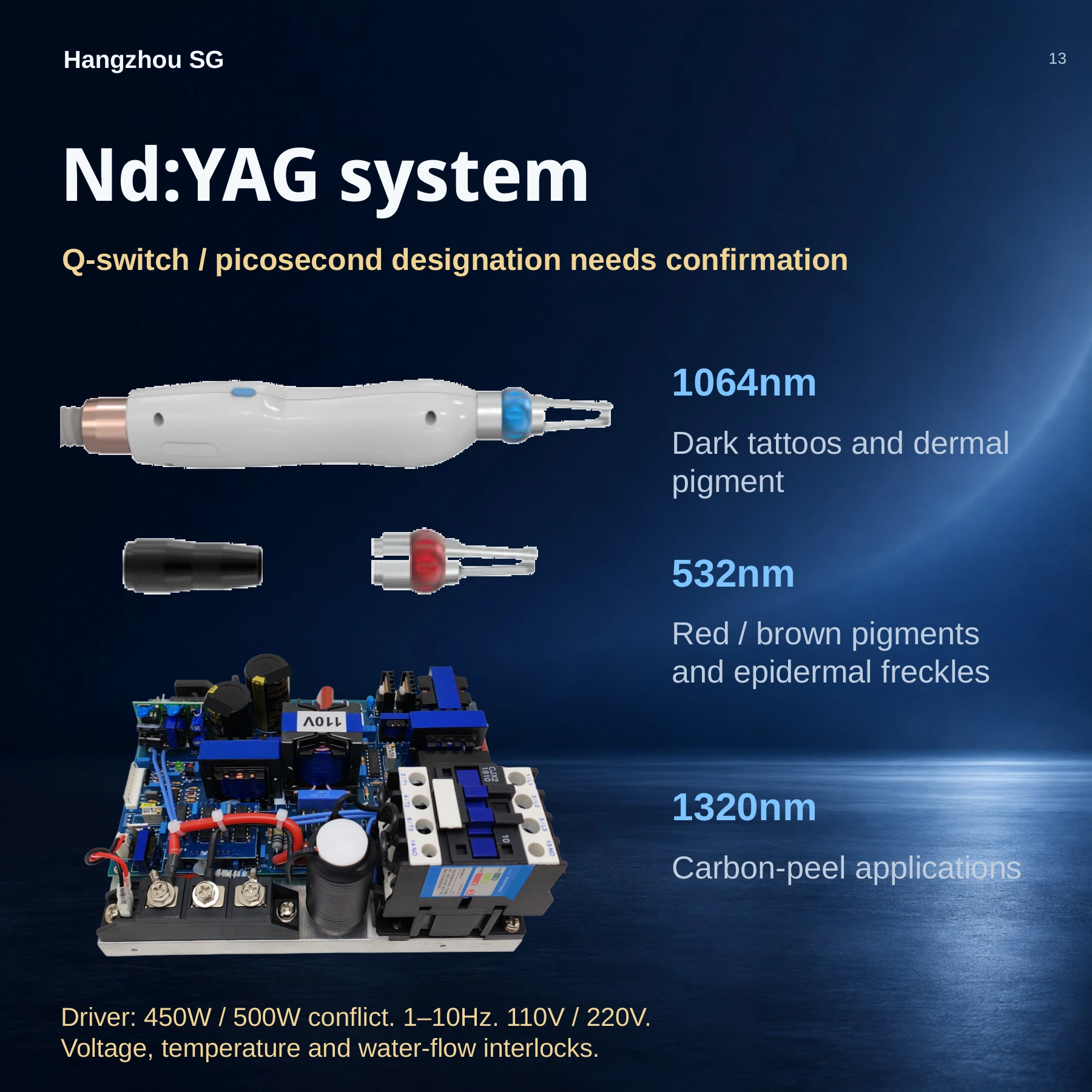

Nd:YAG system

Catalog page 13

source-listed; claims not independently verified

details

Nd:YAG system Q-switch / picosecond designation needs confirmation 1064nm Dark tattoos and dermal pigment 532nm Red / brown pigments and epidermal freckles 1320nm Carbon-peel applications Driver: 450W / 500W conflict. 1–10Hz. 110V / 220V. Voltage, temperature and water-flow interlocks.

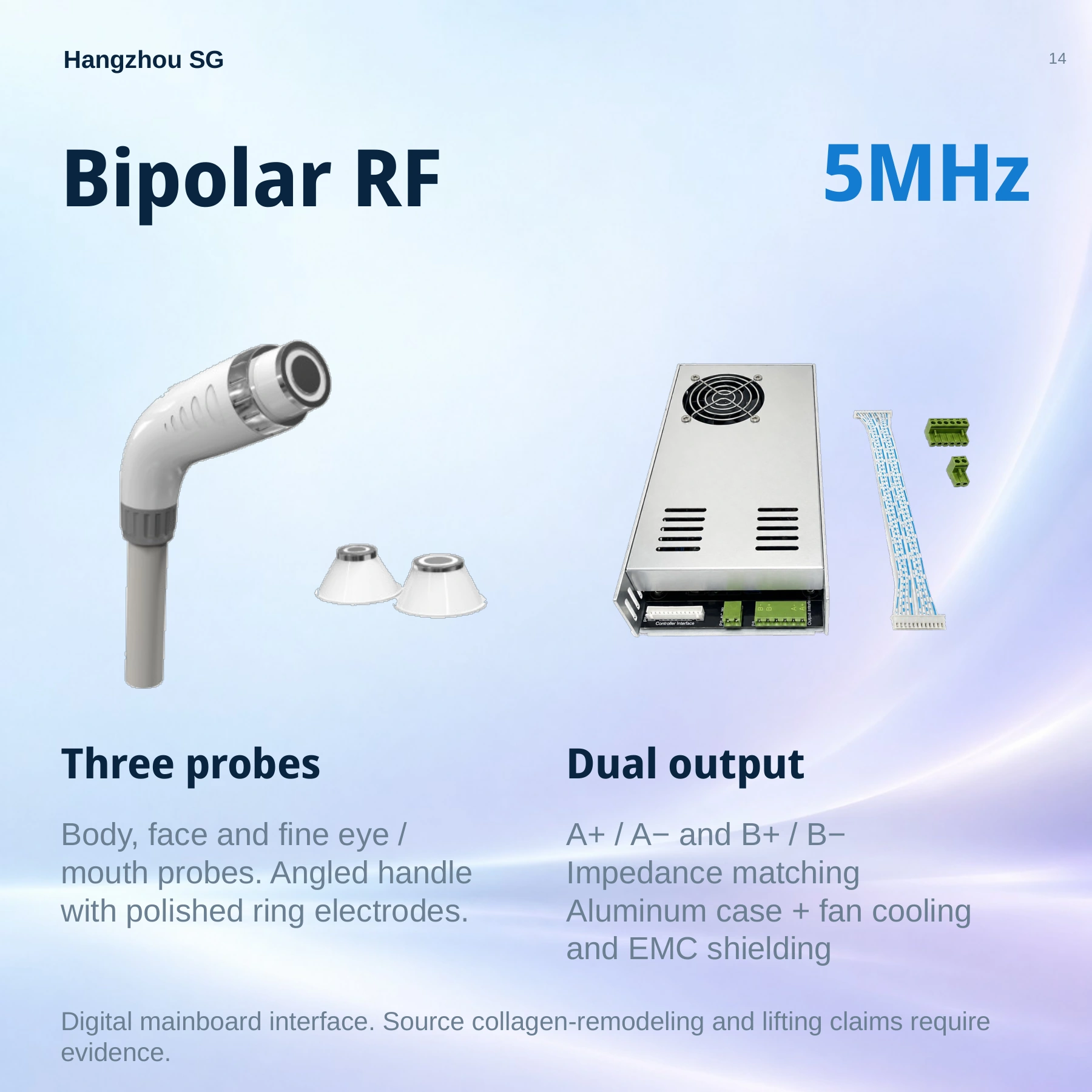

Bipolar RF

Catalog page 14

source-listed; claims not independently verified

details

Bipolar RF 5MHz Three probes Body, face and fine eye / mouth probes. Angled handle with polished ring electrodes. Dual output A+ / A− and B+ / B− Impedance matching Aluminum case + fan cooling and EMC shielding Digital mainboard interface. Source collagen-remodeling and lifting claims require evidence.

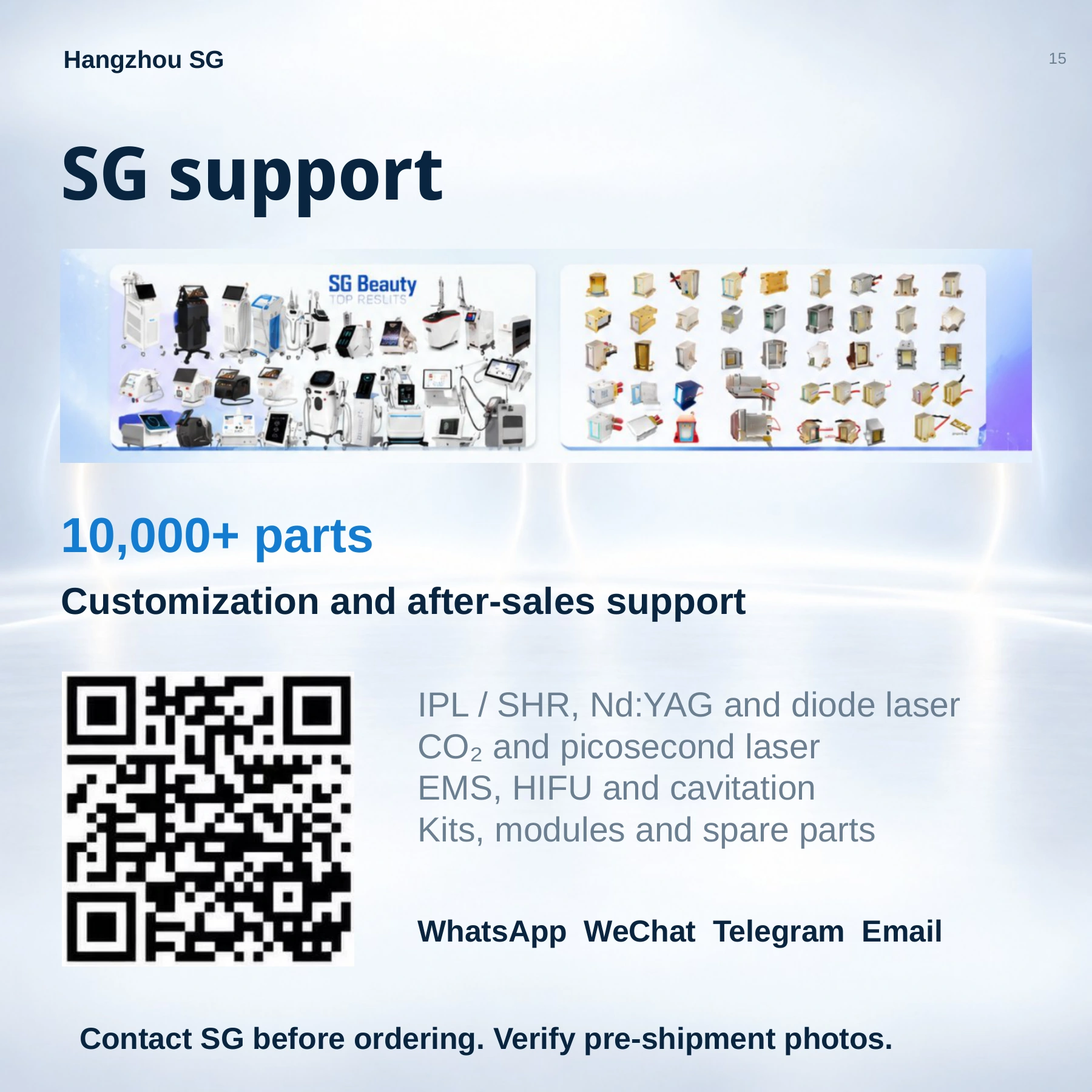

SG support

Catalog page 15

source-listed; claims not independently verified

details

SG support 10,000+ parts Customization and after-sales support IPL / SHR, Nd:YAG and diode laser CO₂ and picosecond laser EMS, HIFU and cavitation Kits, modules and spare parts WhatsApp WeChat Telegram Email Contact SG before ordering. Verify pre-shipment photos.

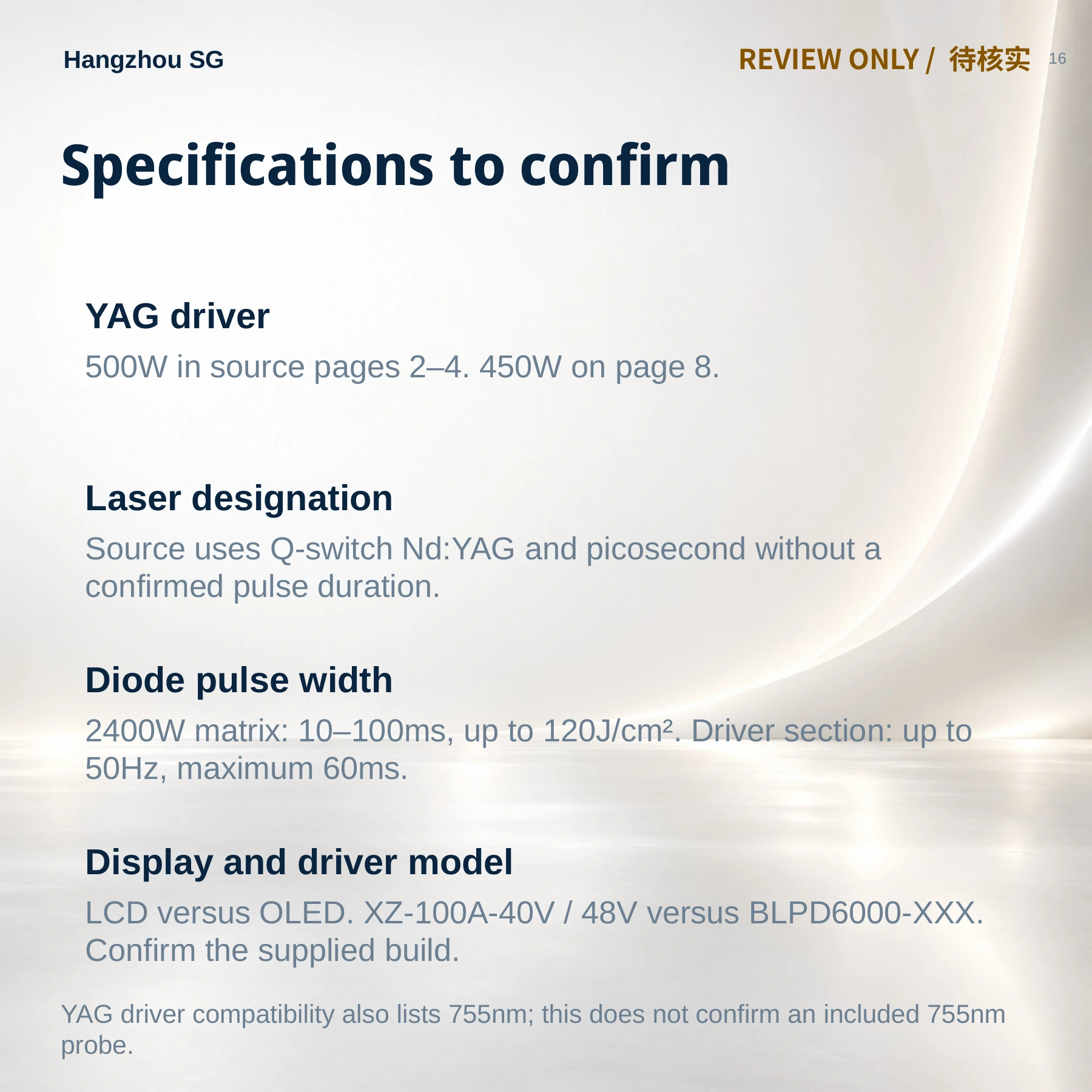

Specifications to confirm

Catalog page 16

REVIEW ONLY / 待核实

details

REVIEW ONLY / 待核实 Specifications to confirm YAG driver 500W in source pages 2–4. 450W on page 8. Laser designation Source uses Q-switch Nd:YAG and picosecond without a confirmed pulse duration. Diode pulse width 2400W matrix: 10–100ms, up to 120J/cm². Driver section: up to 50Hz, maximum 60ms. Display and driver model LCD versus OLED. XZ-100A-40V / 48V versus BLPD6000-XXX. Confirm the supplied build. YAG driver compatibility also lists 755nm; this does not confirm an included 755nm probe.

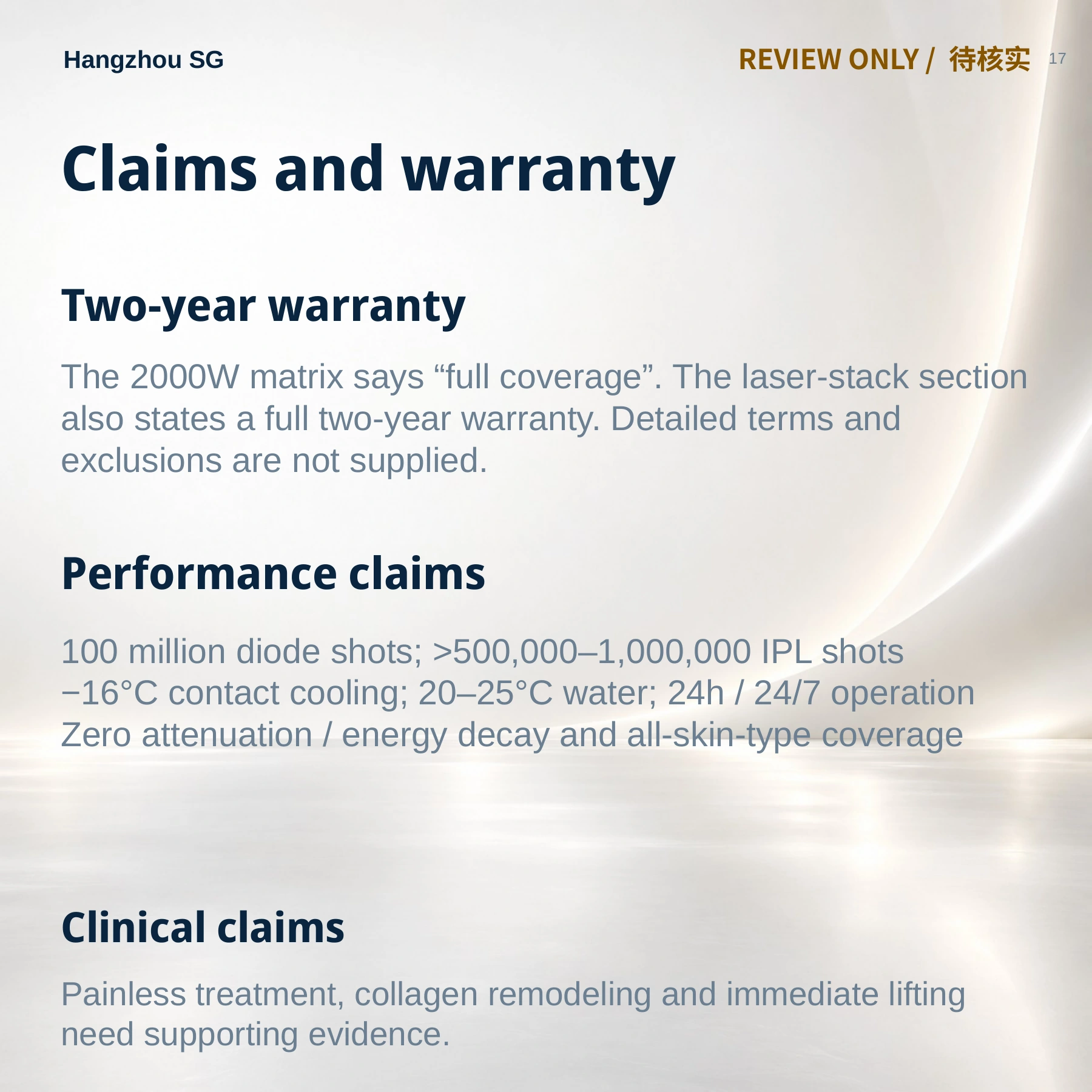

Claims and warranty

Catalog page 17

REVIEW ONLY / 待核实

details

REVIEW ONLY / 待核实 Claims and warranty Two-year warranty The 2000W matrix says “full coverage”. The laser-stack section also states a full two-year warranty. Detailed terms and exclusions are not supplied. Performance claims 100 million diode shots; >500,000–1,000,000 IPL shots −16°C contact cooling; 20–25°C water; 24h / 24/7 operation Zero attenuation / energy decay and all-skin-type coverage Clinical claims Painless treatment, collagen remodeling and immediate lifting need supporting evidence.
