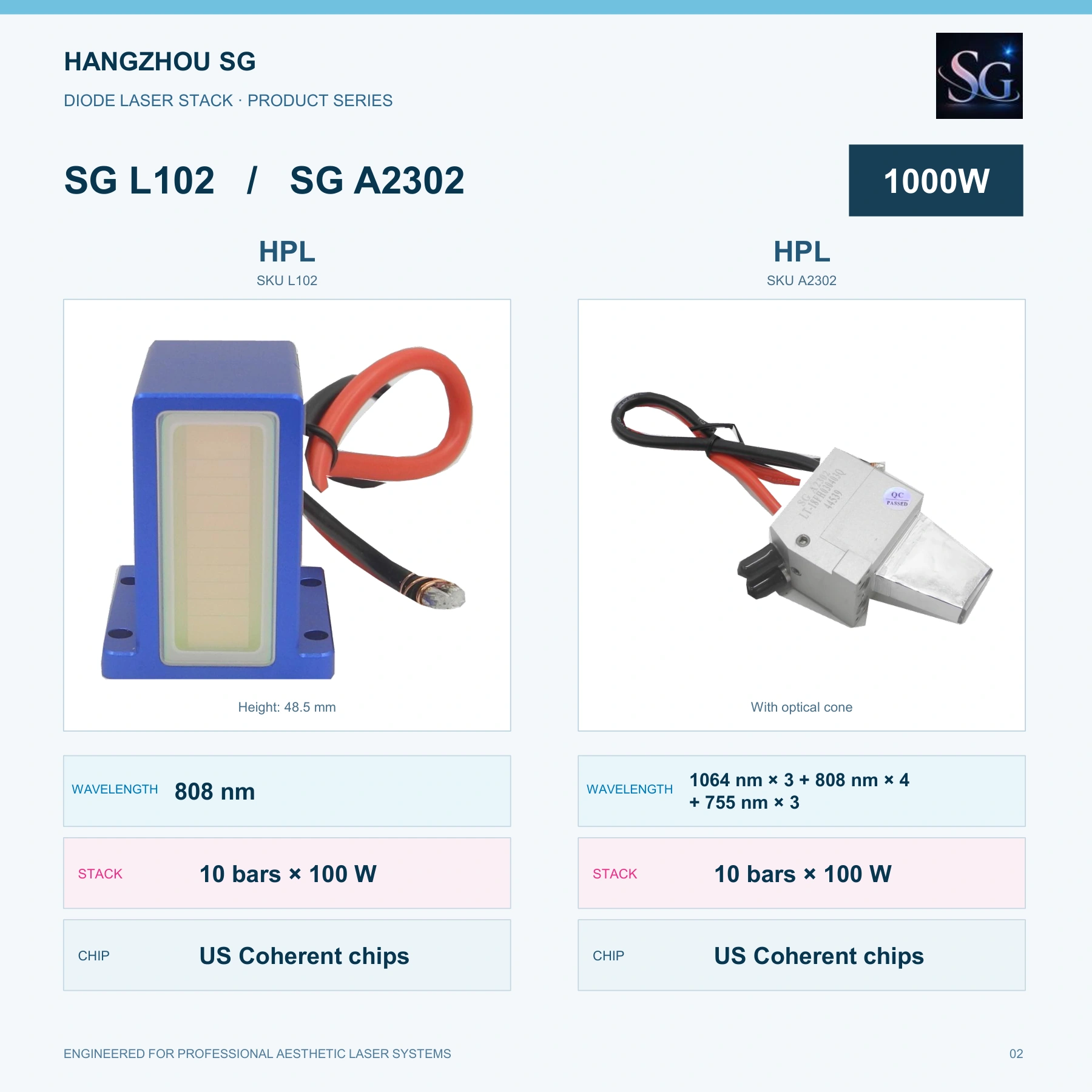

HPL
Catalog page 2
- SG item code
- L102
- Wavelength / bars
- 808 nm
- Stack
- 10 bars × 100 W
- Chip
- US Coherent chips
- Version / dimensions
- Height: 48.5 mm
1000W Diode Laser Stacks
Full catalog
Product names and specifications are also available as text below. The original catalog layout above is unchanged.
Product information and specifications (text)
HPL
Catalog page 2
- SG item code
- A2302
- Wavelength / bars
- 1064 nm × 3 + 808 nm × 4 + 755 nm × 3
- Stack
- 10 bars × 100 W
- Chip
- US Coherent chips
- Version / dimensions
- With optical cone

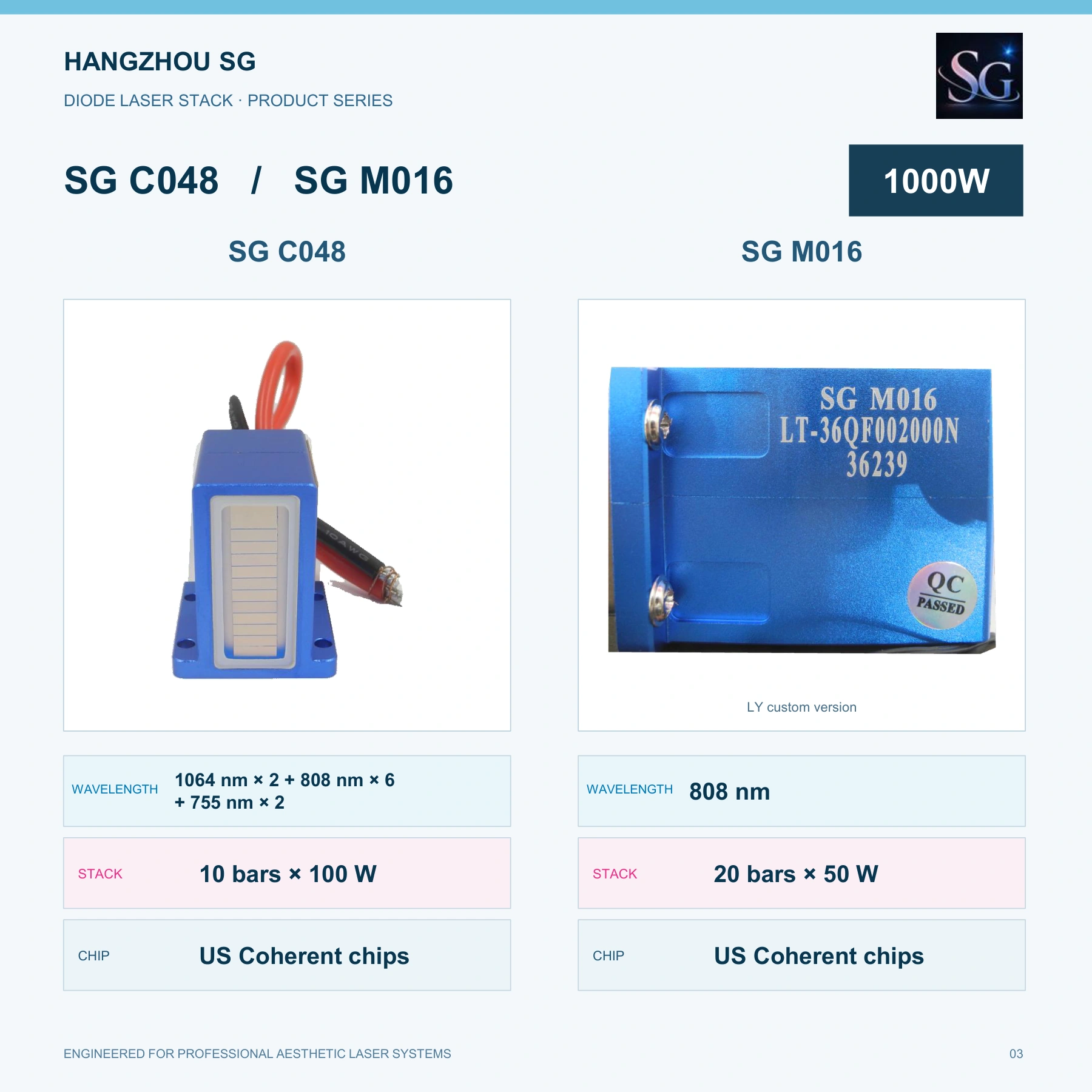

SG C048
Catalog page 3
- SG item code
- C048
- Wavelength / bars
- 1064 nm × 2 + 808 nm × 6 + 755 nm × 2
- Stack
- 10 bars × 100 W
- Chip
- US Coherent chips
SG M016
Catalog page 3
- SG item code
- M016
- Wavelength / bars
- 808 nm
- Stack
- 20 bars × 50 W
- Chip
- US Coherent chips
- Version / dimensions
- LY custom version
HPL/LT

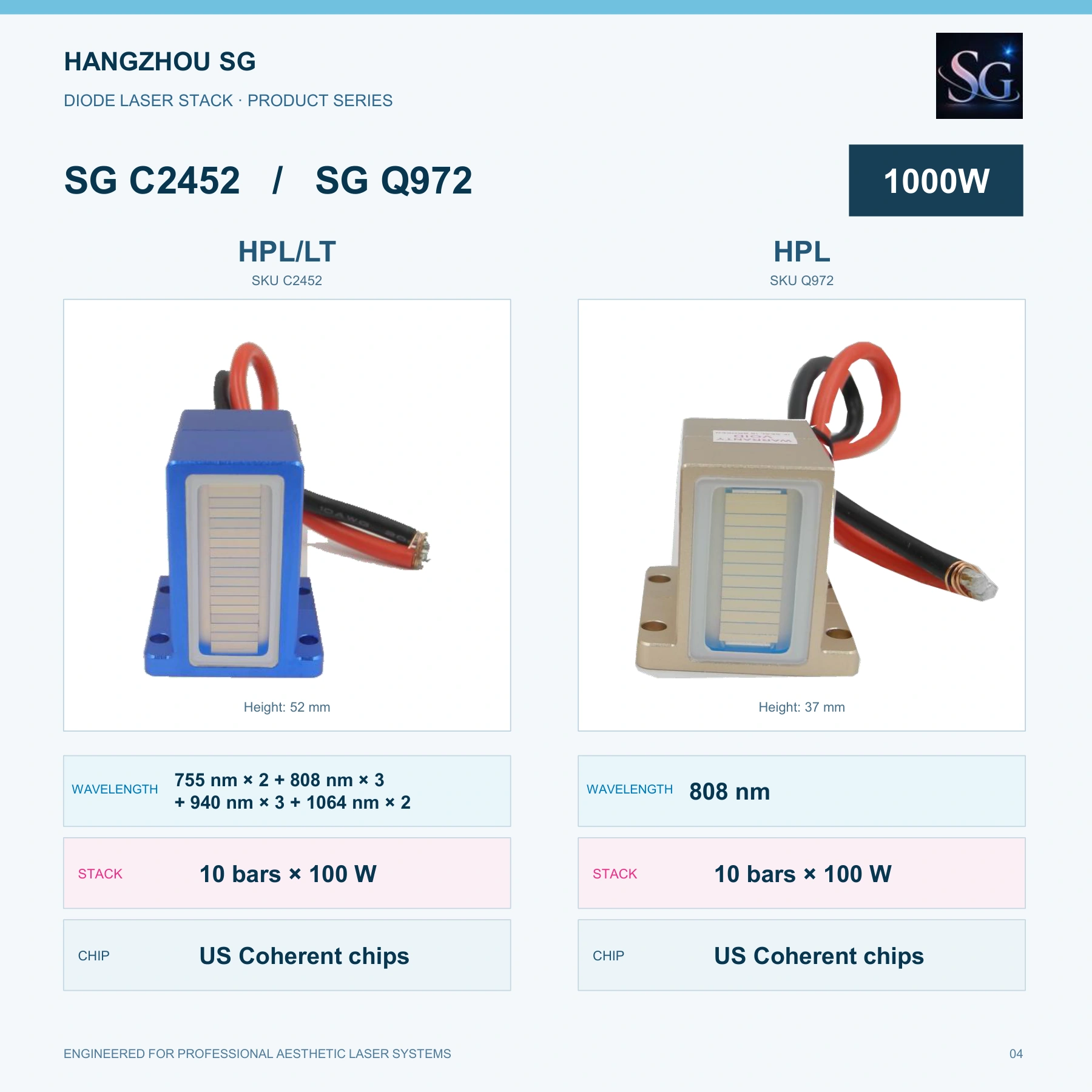

Catalog page 4
- SG item code
- C2452
- Wavelength / bars
- 755 nm × 2 + 808 nm × 3 + 940 nm × 3 + 1064 nm × 2
- Stack
- 10 bars × 100 W
- Chip
- US Coherent chips
- Version / dimensions
- Height: 52 mm
HPL
Catalog page 4
- SG item code
- Q972
- Wavelength / bars
- 808 nm
- Stack
- 10 bars × 100 W
- Chip
- US Coherent chips
- Version / dimensions
- Height: 37 mm
SG Q1009

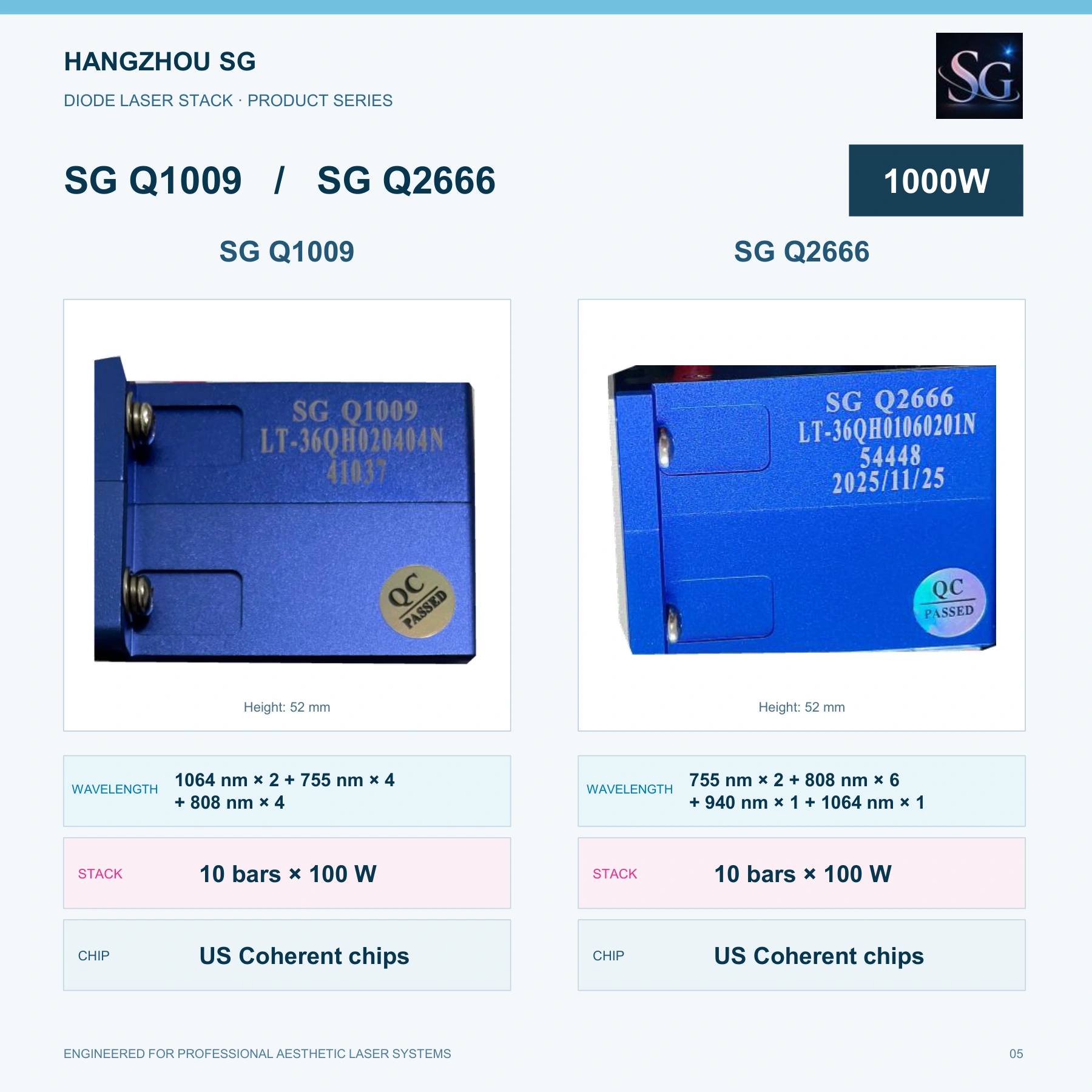

Catalog page 5
- SG item code
- Q1009
- Wavelength / bars
- 1064 nm × 2 + 755 nm × 4 + 808 nm × 4
- Stack
- 10 bars × 100 W
- Chip
- US Coherent chips
- Version / dimensions
- Height: 52 mm
SG Q2666
Catalog page 5
- SG item code
- Q2666
- Wavelength / bars
- 755 nm × 2 + 808 nm × 6 + 940 nm × 1 + 1064 nm × 1
- Stack
- 10 bars × 100 W
- Chip
- US Coherent chips
- Version / dimensions
- Height: 52 mm

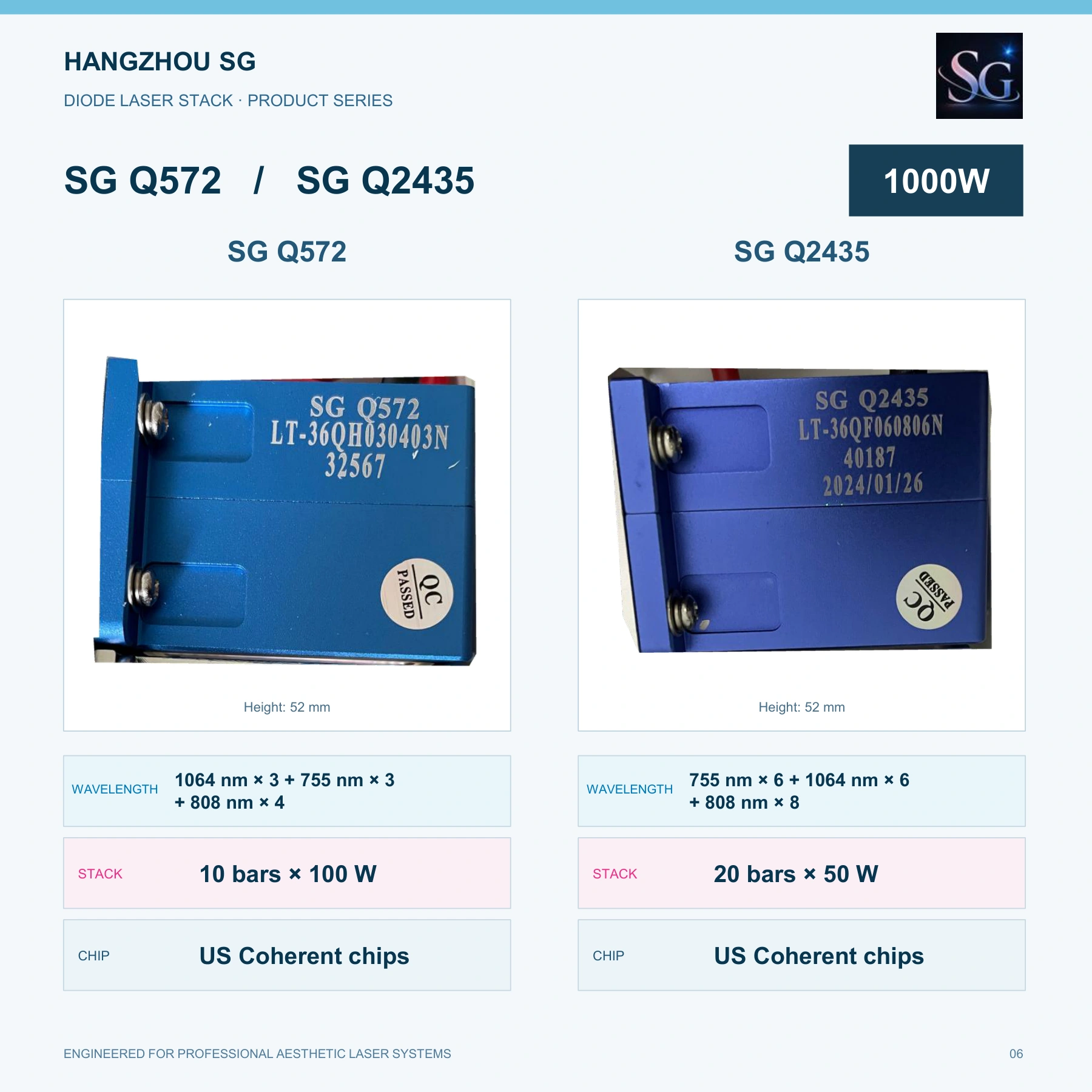

SG Q572
Catalog page 6
- SG item code
- Q572
- Wavelength / bars
- 1064 nm × 3 + 755 nm × 3 + 808 nm × 4
- Stack
- 10 bars × 100 W
- Chip
- US Coherent chips
- Version / dimensions
- Height: 52 mm
SG Q2435
Catalog page 6
- SG item code
- Q2435
- Wavelength / bars
- 755 nm × 6 + 1064 nm × 6 + 808 nm × 8
- Stack
- 20 bars × 50 W
- Chip
- US Coherent chips
- Version / dimensions
- Height: 52 mm
LST-L-1010BAI

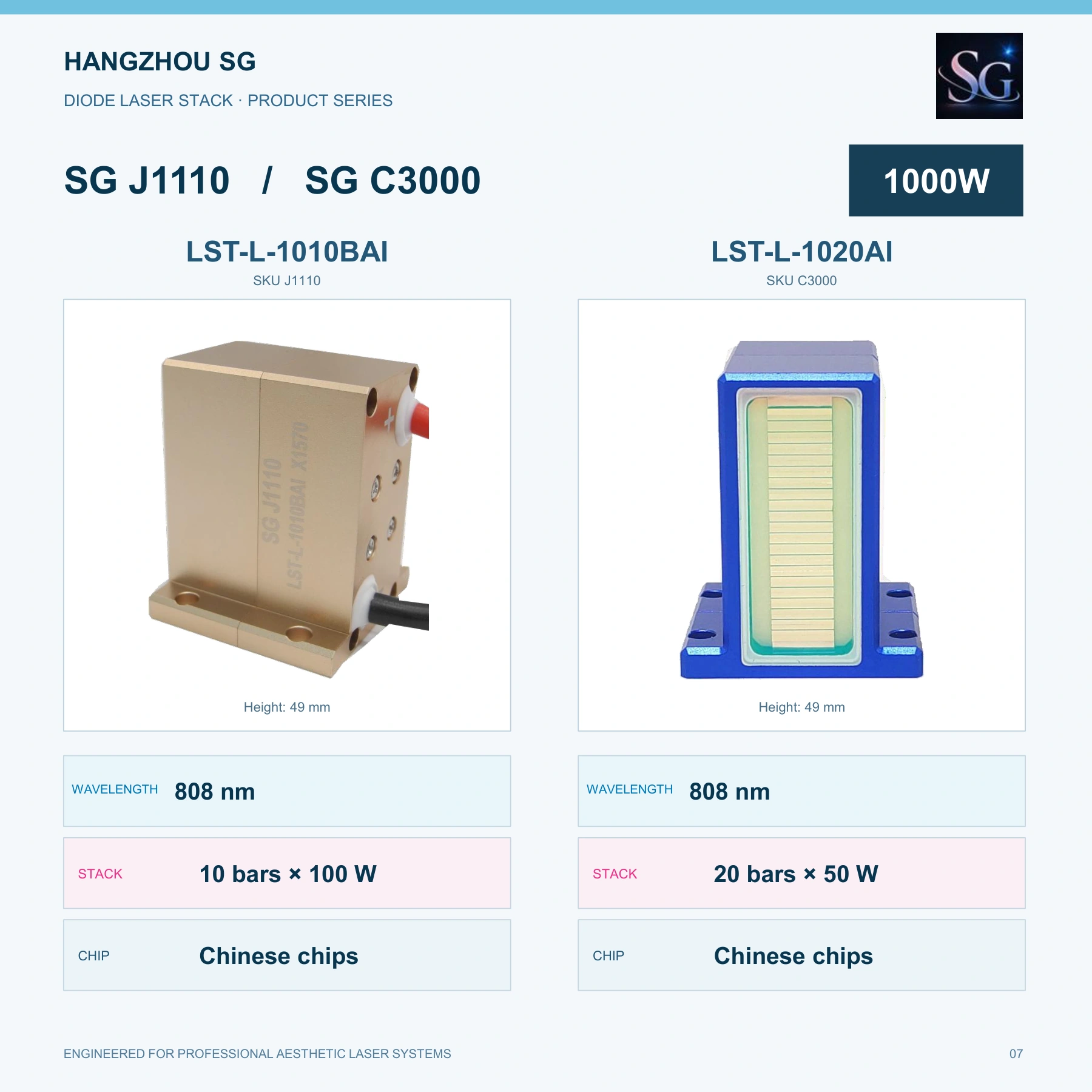

Catalog page 7
- SG item code
- J1110
- Wavelength / bars
- 808 nm
- Stack
- 10 bars × 100 W
- Chip
- Chinese chips
- Version / dimensions
- Height: 49 mm
LST-L-1020AI
Catalog page 7
- SG item code
- C3000
- Wavelength / bars
- 808 nm
- Stack
- 20 bars × 50 W
- Chip
- Chinese chips
- Version / dimensions
- Height: 49 mm
LST-L-311HAS

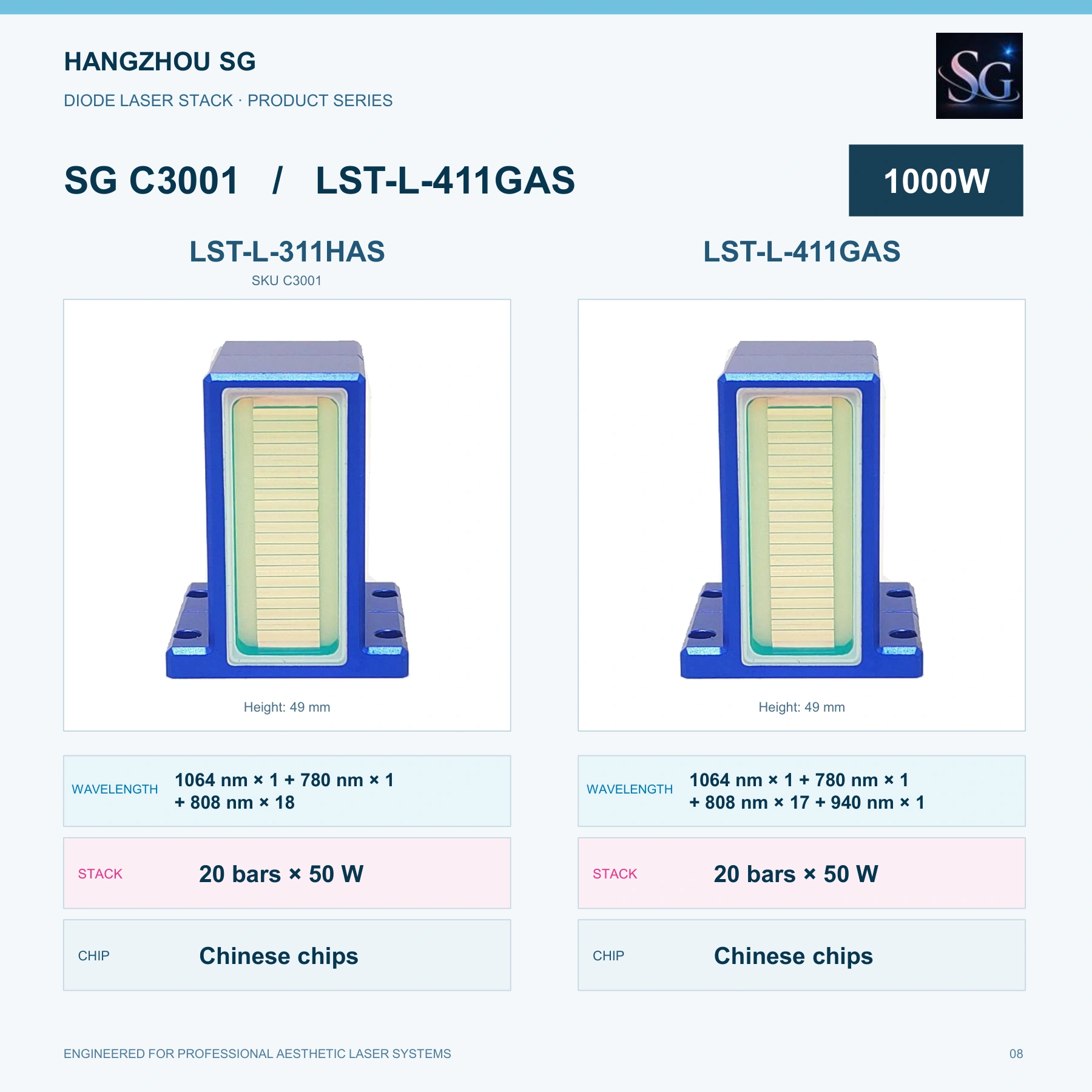

Catalog page 8
- SG item code
- C3001
- Wavelength / bars
- 1064 nm × 1 + 780 nm × 1 + 808 nm × 18
- Stack
- 20 bars × 50 W
- Chip
- Chinese chips
- Version / dimensions
- Height: 49 mm
LST-L-411GAS
Catalog page 8
- Wavelength / bars
- 1064 nm × 1 + 780 nm × 1 + 808 nm × 17 + 940 nm × 1
- Stack
- 20 bars × 50 W
- Chip
- Chinese chips
- Version / dimensions
- Height: 49 mm
LST-L-1020AI

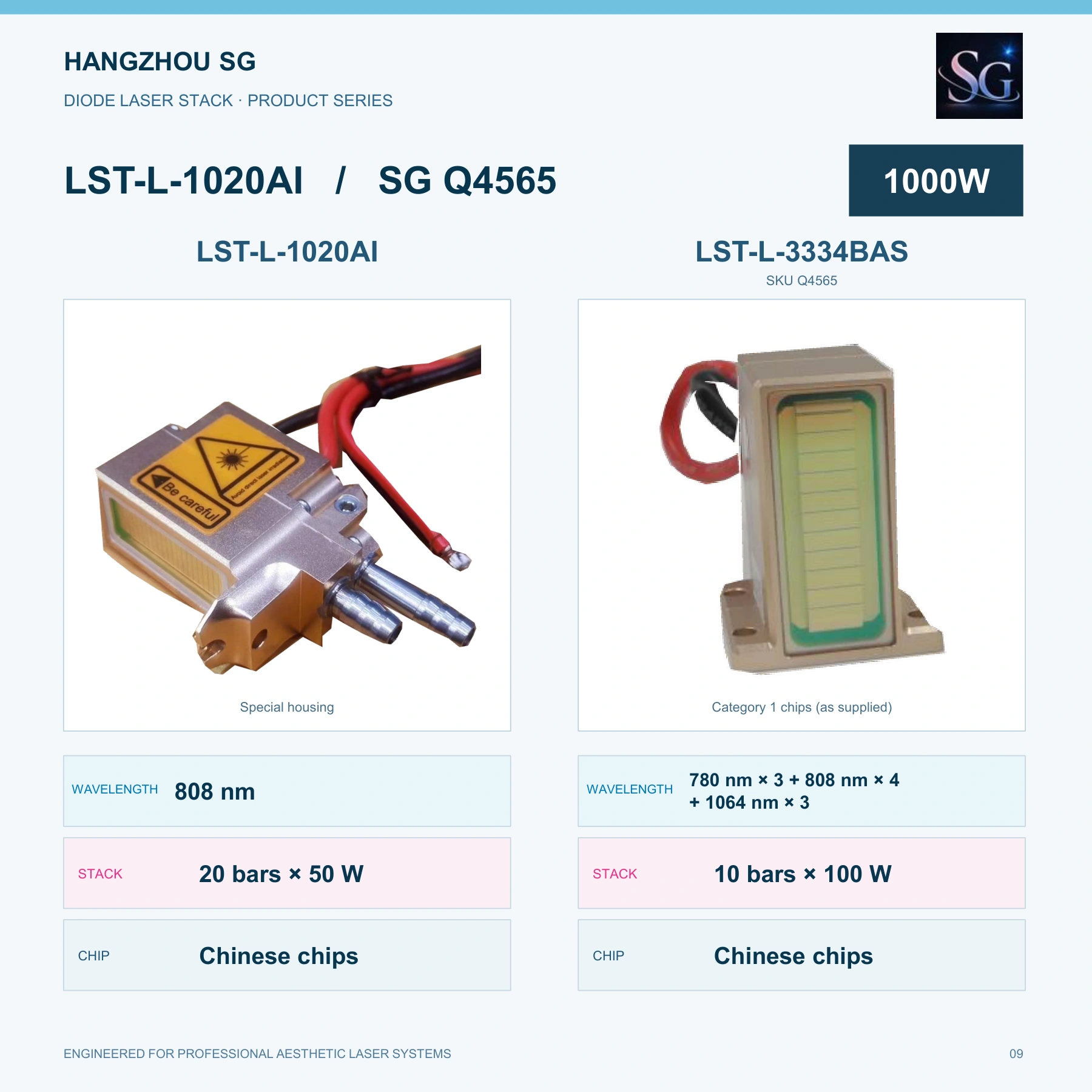

Catalog page 9
- Wavelength / bars
- 808 nm
- Stack
- 20 bars × 50 W
- Chip
- Chinese chips
- Version / dimensions
- Special housing
LST-L-3334BAS
Catalog page 9
- SG item code
- Q4565
- Wavelength / bars
- 780 nm × 3 + 808 nm × 4 + 1064 nm × 3
- Stack
- 10 bars × 100 W
- Chip
- Chinese chips
- Version / dimensions
- Category 1 chips (as supplied)
LST

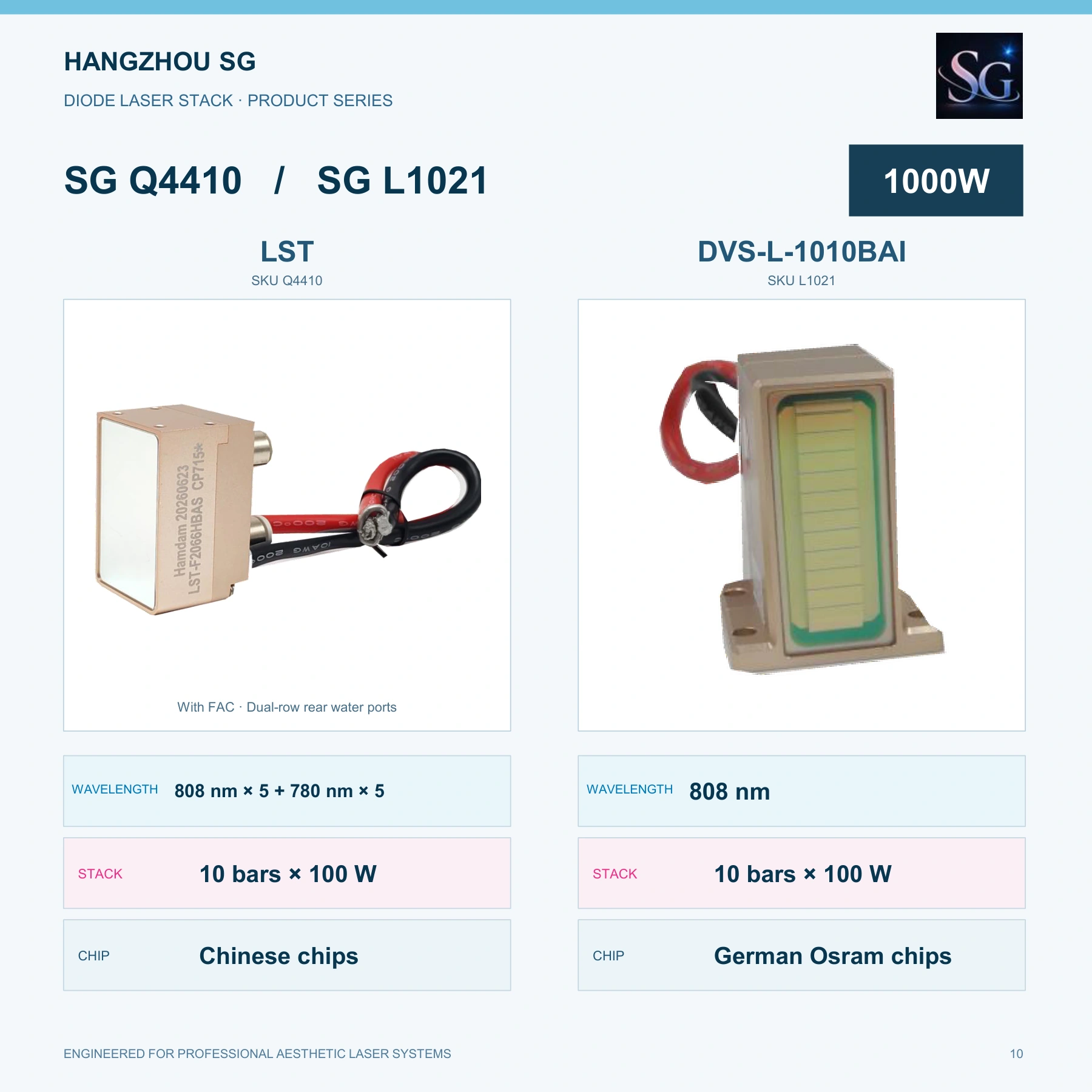

Catalog page 10
- SG item code
- Q4410
- Wavelength / bars
- 808 nm × 5 + 780 nm × 5
- Stack
- 10 bars × 100 W
- Chip
- Chinese chips
- Version / dimensions
- With FAC · Dual-row rear water ports
DVS-L-1010BAI
Catalog page 10
- SG item code
- L1021
- Wavelength / bars
- 808 nm
- Stack
- 10 bars × 100 W
- Chip
- German Osram chips
DVS-L-F3334BAS
Catalog page 11
- SG item code
- C2404
- Wavelength / bars
- 1064 nm × 3 + 808 nm × 7
- Stack
- 10 bars × 100 W
- Chip
- German Osram chips
- Version / dimensions
- With FAC · Height: 52.2 mm
LST-4010BAI
Catalog page 11
- SG item code
- Q3835
- Wavelength / bars
- 1064 nm
- Stack
- 10 bars × 100 W
- Chip
- Chinese chips
- Version / dimensions
- Category 1 chips (as supplied)
LST
Catalog page 12
- SG item code
- Q4410
- Wavelength / bars
- 808 nm × 5 + 780 nm × 5
- Stack
- 10 bars × 100 W
- Chip
- Chinese chips
- Version / dimensions
- With FAC · Dual-row rear water ports
LST-L-F1010BAI
Catalog page 12
- SG item code
- Q4320
- Wavelength / bars
- 808 nm
- Stack
- 10 bars × 100 W
- Chip
- Chinese chips
- Version / dimensions
- With FAC · Category 1 chips

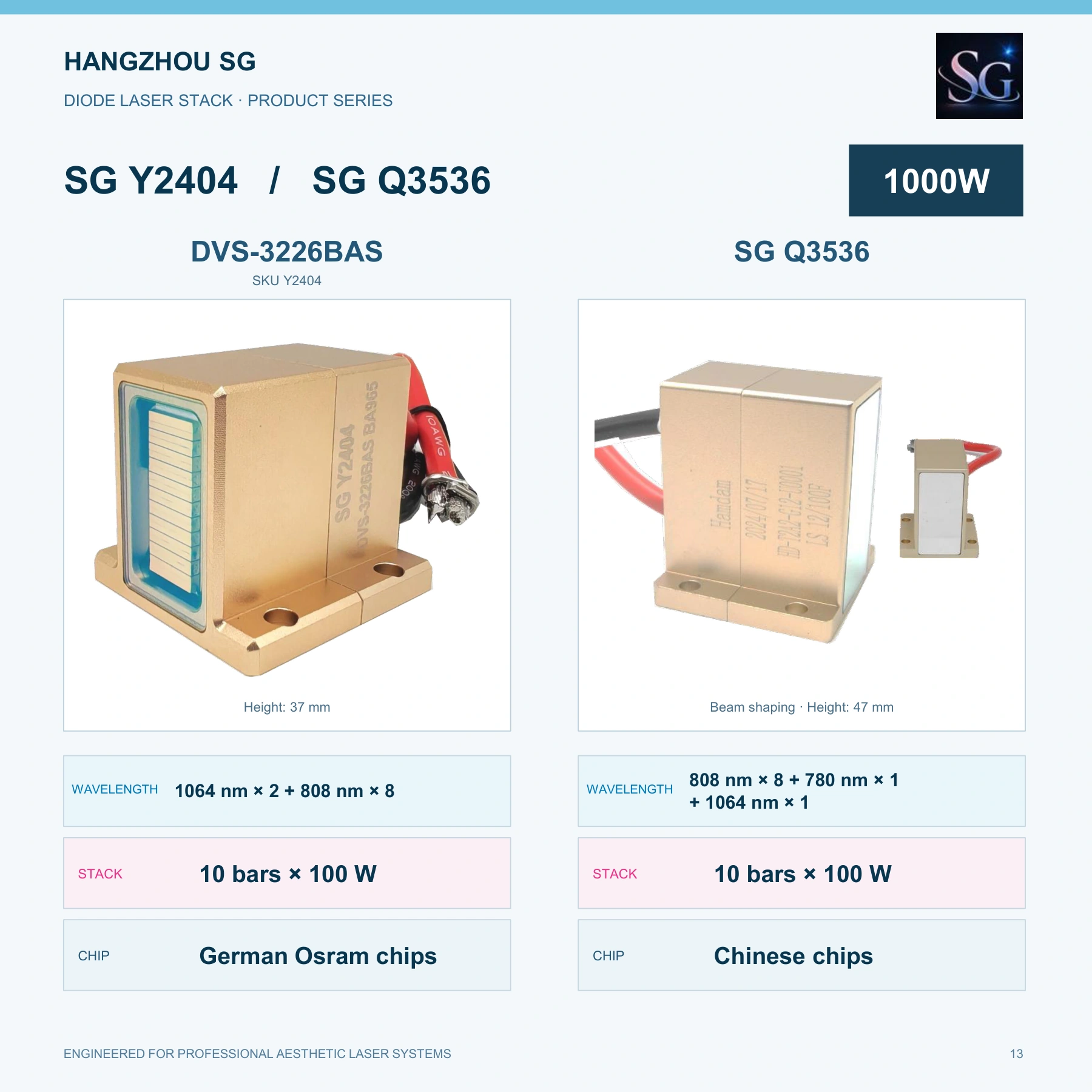

DVS-3226BAS
Catalog page 13
- SG item code
- Y2404
- Wavelength / bars
- 1064 nm × 2 + 808 nm × 8
- Stack
- 10 bars × 100 W
- Chip
- German Osram chips
- Version / dimensions
- Height: 37 mm
SG Q3536
Catalog page 13
- SG item code
- Q3536
- Wavelength / bars
- 808 nm × 8 + 780 nm × 1 + 1064 nm × 1
- Stack
- 10 bars × 100 W
- Chip
- Chinese chips
- Version / dimensions
- Beam shaping · Height: 47 mm
SG Q3050

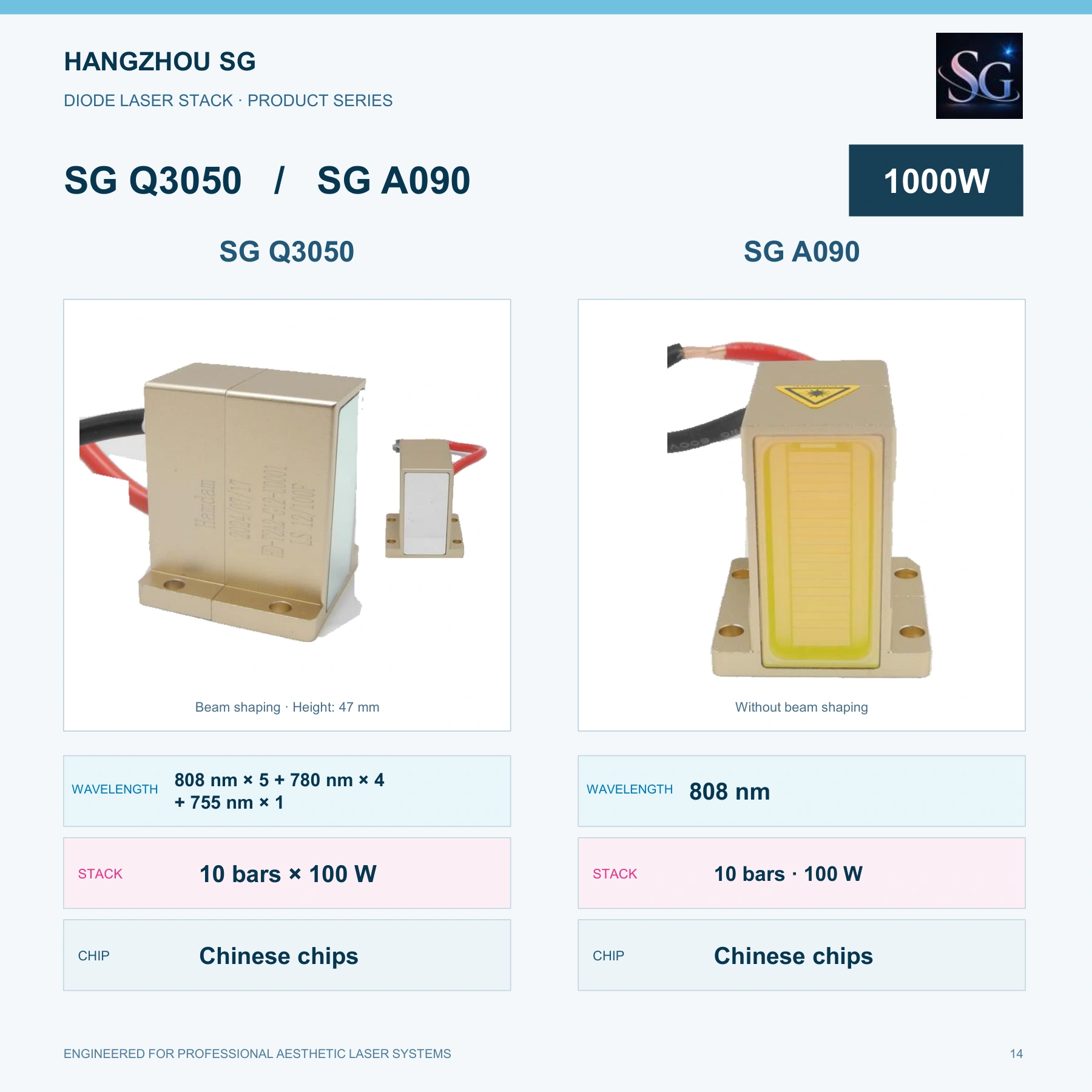

Catalog page 14
- SG item code
- Q3050
- Wavelength / bars
- 808 nm × 5 + 780 nm × 4 + 755 nm × 1
- Stack
- 10 bars × 100 W
- Chip
- Chinese chips
- Version / dimensions
- Beam shaping · Height: 47 mm
SG A090
Catalog page 14
- SG item code
- A090
- Wavelength / bars
- 808 nm
- Stack
- 10 bars · 100 W
- Chip
- Chinese chips
- Version / dimensions
- Without beam shaping
SG L1099

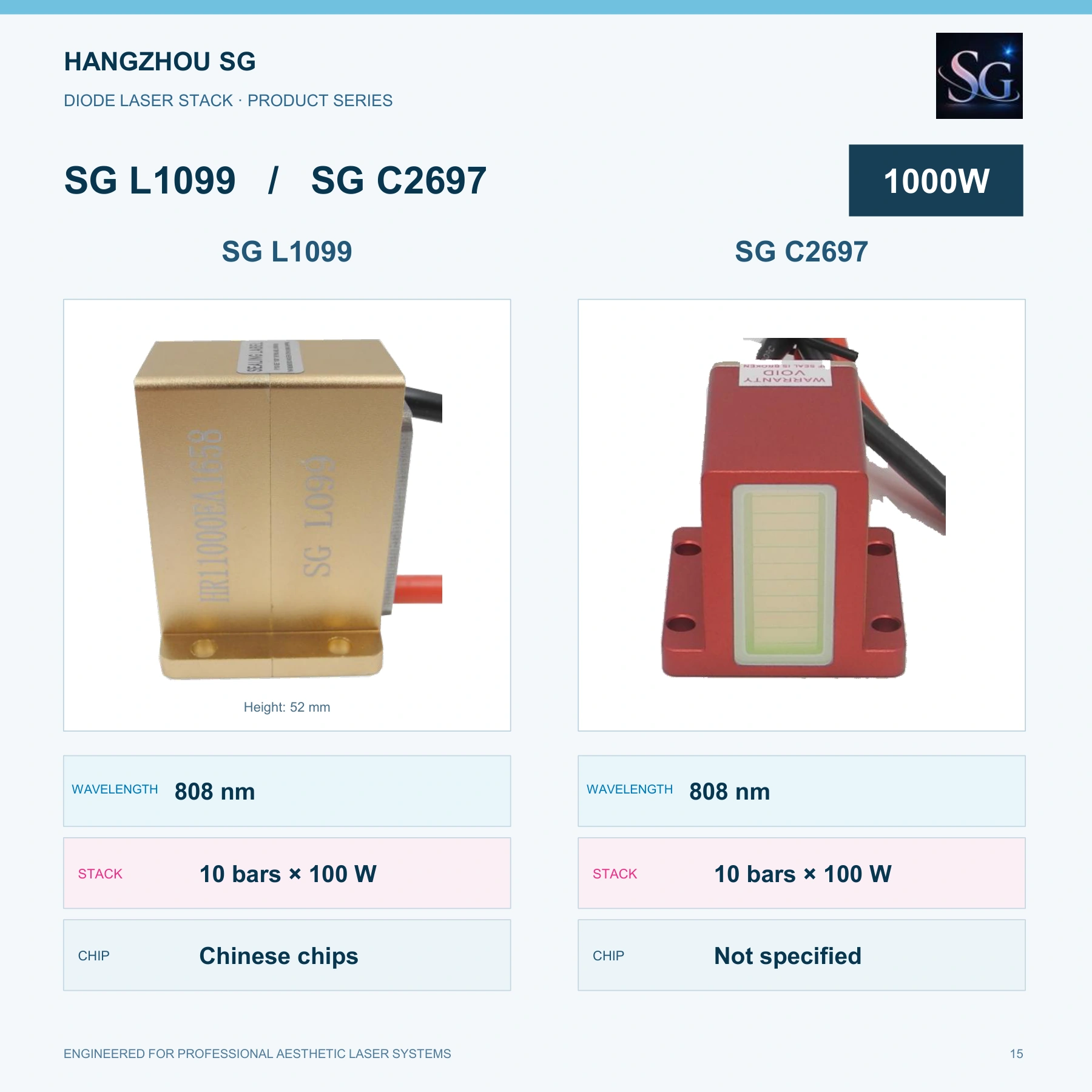

Catalog page 15
- SG item code
- L1099
- Wavelength / bars
- 808 nm
- Stack
- 10 bars × 100 W
- Chip
- Chinese chips
- Version / dimensions
- Height: 52 mm
SG C2697
Catalog page 15
- SG item code
- C2697
- Wavelength / bars
- 808 nm
- Stack
- 10 bars × 100 W
- Chip
- Not specified
SG C3750
Catalog page 16
- SG item code
- C3750
- Wavelength / bars
- 808 nm × 4 + 755 nm × 4 + 1064 nm × 2
- Stack
- 10 bars × 100 W
- Chip
- Chinese chips
SG A2701
Catalog page 16
- SG item code
- A2701
- Wavelength / bars
- 808 nm + 1064 nm
- Stack
- 10 bars · 100 W
- Chip
- Chinese chips
- Version / dimensions
- Wavelength distribution not specified
Specifications reproduce the catalog values. Confirm the exact configuration before ordering. Any listed prices are catalog reference quotations; current validity, taxes and shipping require confirmation.
