Fixed optical range
One handpiece, fixed 640–1200 nm, without separate filter accessories. Cooling combines water, air and semiconductor systems.
Portable platform · 15.6-inch display

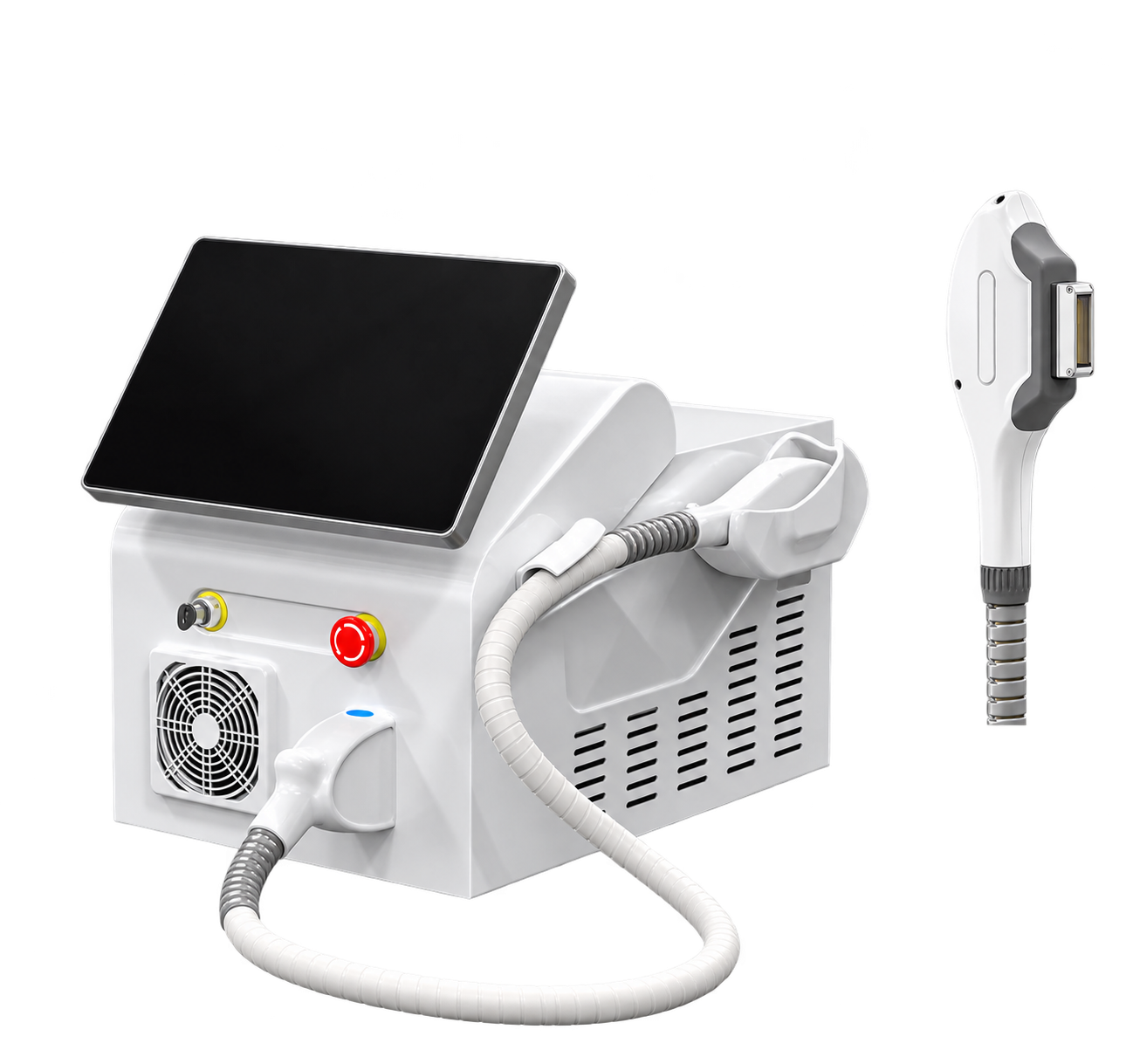

LY06 Portable IPL / SHR Machine
IPL · SHR · SSR Fixed 640–1200 nm
Compact white tabletop system with one Model M handpiece, a 15 × 50 mm² spot and a fixed 640–1200 nm optical range.
Reference priceUSD 1,800Configuration shown · quotation required
- Handpiece
- 1 × Model M
- Display
- 15.6-inch touchscreen
- Capacitance
- 45,000 μF
- Machine power
- 2500 W
This SHR/IPL/SSR configuration is separate from the LY06 Luna diode + Q-switched YAG system.
One portable chassis
A focused single-handpiece configuration
The large display, compact body and one fixed-range Model M handpiece keep the supplied configuration clear. No interchangeable filter set is included or shown.
Firstlight F703 lamp
Firstlight F703 xenon lamp, specified size 7 × 60 × 124 mm. Lamp life is not guaranteed. Capacitance is 3 × 15,000 μF.
Dazhi power supply
Dazhi 2000 W electrical module within a 2500 W complete machine; neither value is optical output power.
Portable format
Large-screen control in a compact body
The 15.6-inch touchscreen sits above the white chassis. The supplied configuration includes exactly one fixed-range Model M handpiece.
- Machine size: 46 × 38 × 41 cm
- Net weight: 28 kg
- 110 V · 50 Hz
Included: 1 × Model M handpieceQuoted configuration
Technical specifications
Values follow this supplied fixed-range configuration, not earlier multi-filter manuals.
- System modes
- IPL / SHR / SSR
- Display
- 15.6-inch touchscreen
- Handpiece
- 1 × IPL/SHR/SSR Model M
- Optical range
- Fixed 640–1200 nm
- Spot size
- 15 × 50 mm²
- Capacitance
- 45,000 μF
- Xenon lamp
- Firstlight F703
- IPL power supply
- Dazhi 2000 W
- Complete machine power
- 2500 W
- Electrical supply
- 110 V · 50 Hz
- Machine size
- 46 × 38 × 41 cm
- Machine weight
- 28 kg net
- Packing size
- 73 × 52 × 60 cm · 0.23 CBM
- Shipping weight
- 39 kg gross
- Packing
- Aluminium case + carton
- Reference price
- USD 1,800
Configuration-specific quotation
Confirm the LY06 Portable SHR build
Send your destination and quantity so voltage, packing and commercial terms can be confirmed.
