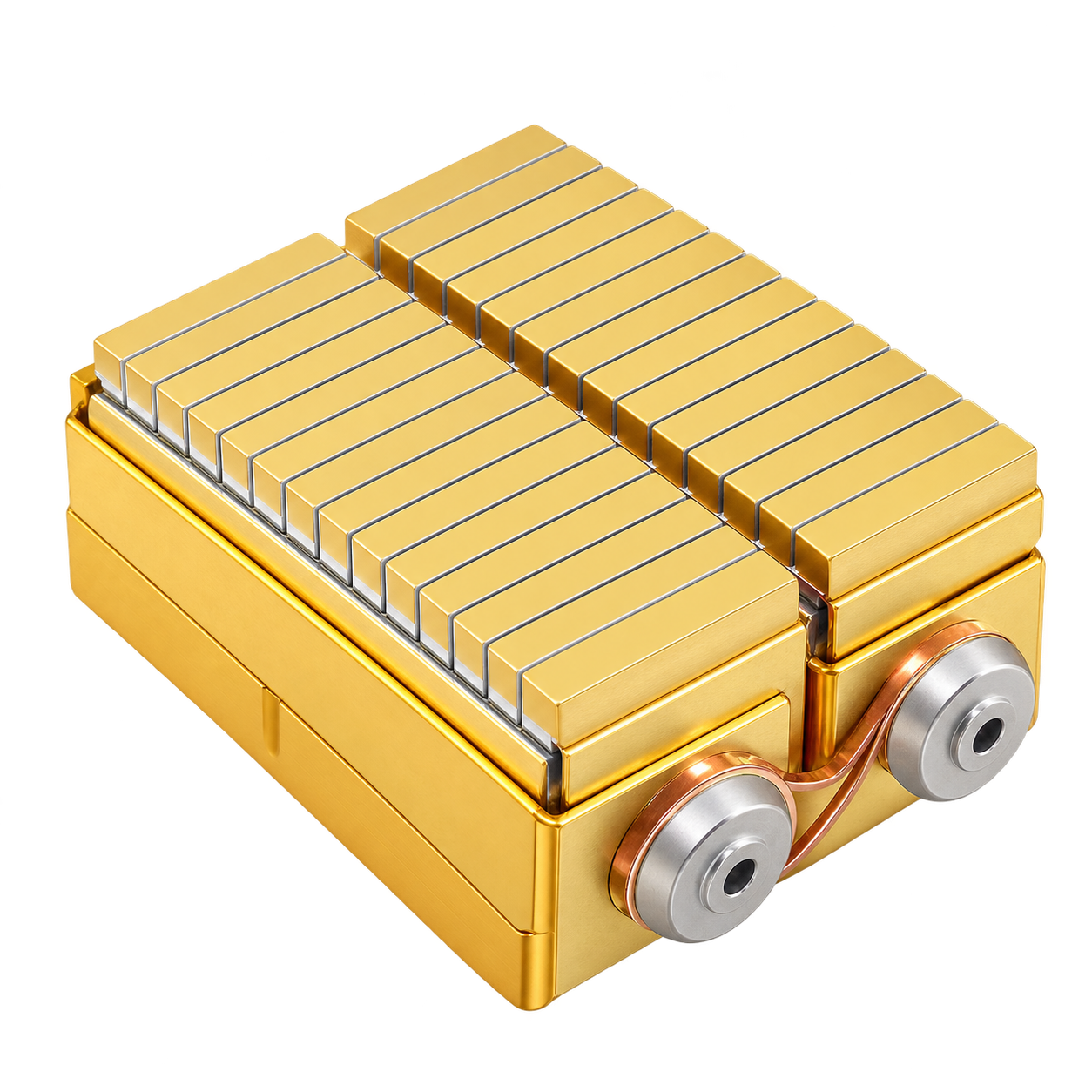

C1054 double-row diode laser stack, isolated studio render

Studio render based on the original C1054 photograph · transparent PNG on white

808 nm · double row · 24 bars

C1054 2400 W Double-Row Diode Laser Stack

LT-00HH002400N SG SKU C1054

A compact double-row stack configured as 24 × 100 W bars for hair-removal and other compatible diode-laser platforms.

Optical power
2400 W
Wavelength
808 nm
Configuration
12 bars × 2 rows
Bar rating
100 W × 24

Reference EXW pricing

$1,780 USD / pc
Indicative EXW unit pricing. Confirm current availability, specification, final price and commercial terms before ordering.

One documented configuration

Built around a clear optical layout

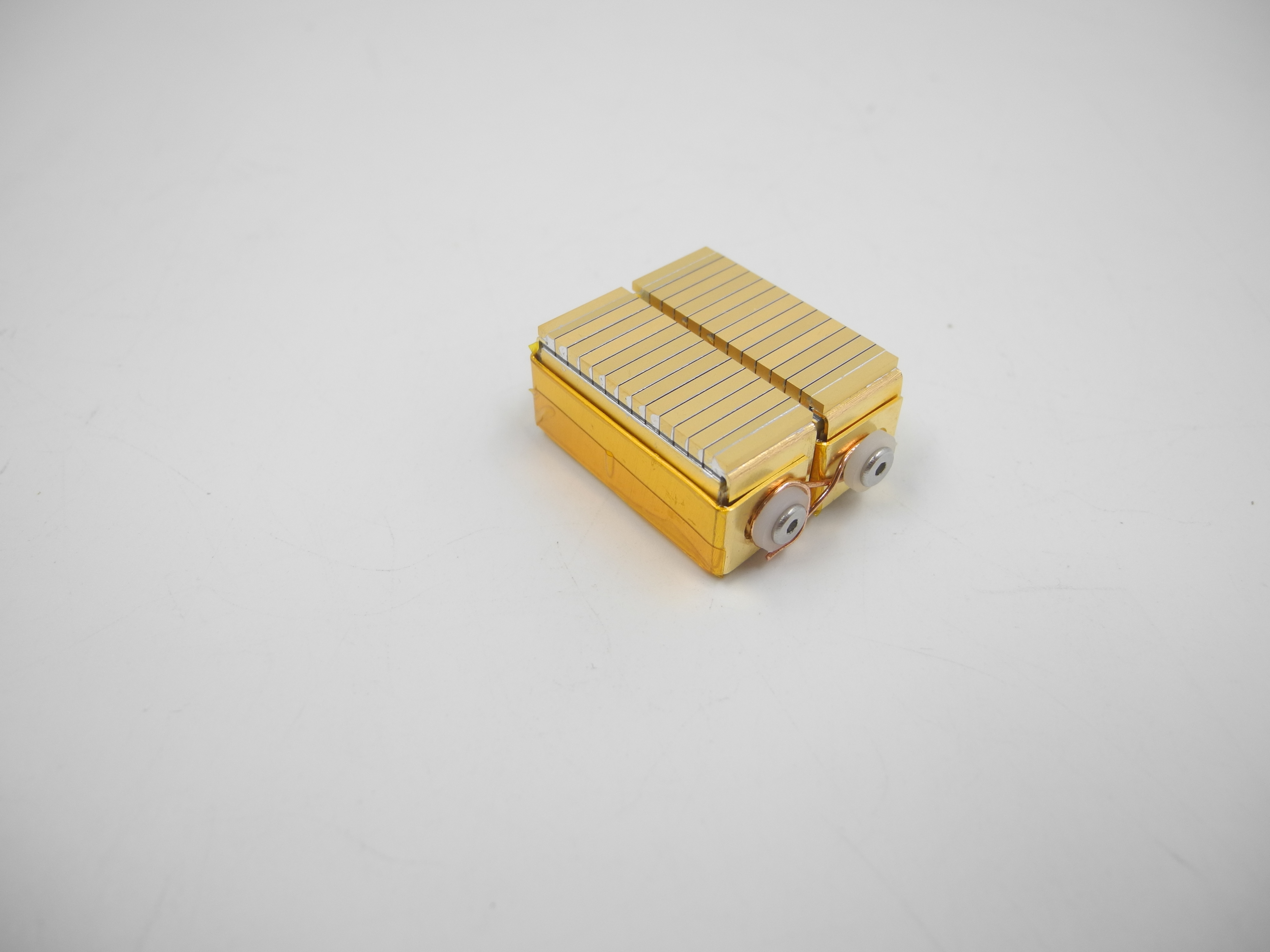

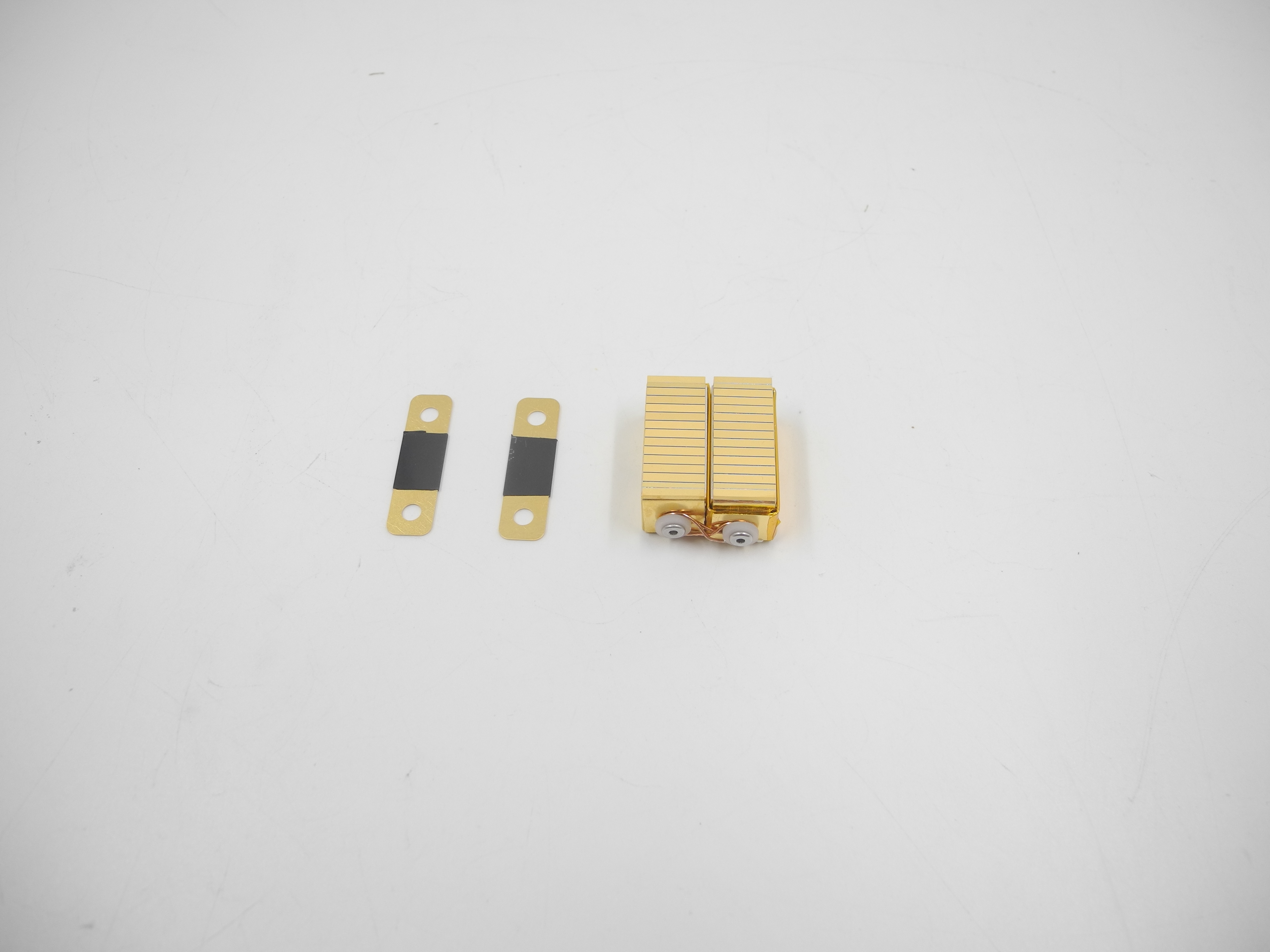

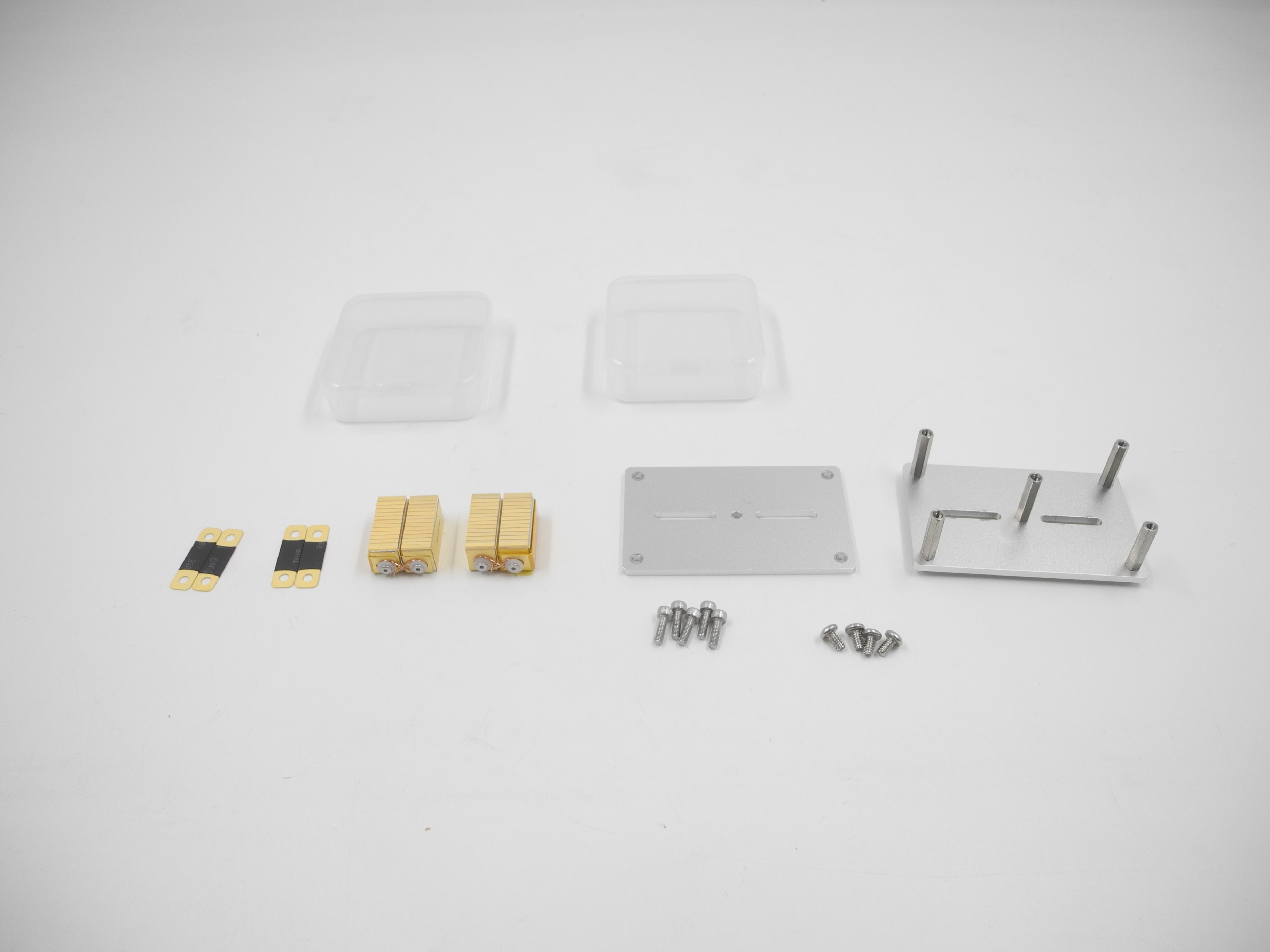

Two parallel rows keep all 24 bars visible and serviceable as one compact stack. Product photos show the supplied stack, busbars and mounting hardware without altering its physical form.

01

Double-row geometry

12 bars in each row, 24 bars total, at 100 W per bar.

02

Single wavelength

808 nm configuration documented in the product and order records.

03

Batch-qualified chip source

US Coherent bar chips are documented for the verified 2025 shipment batch. Confirm chip source for each new order.

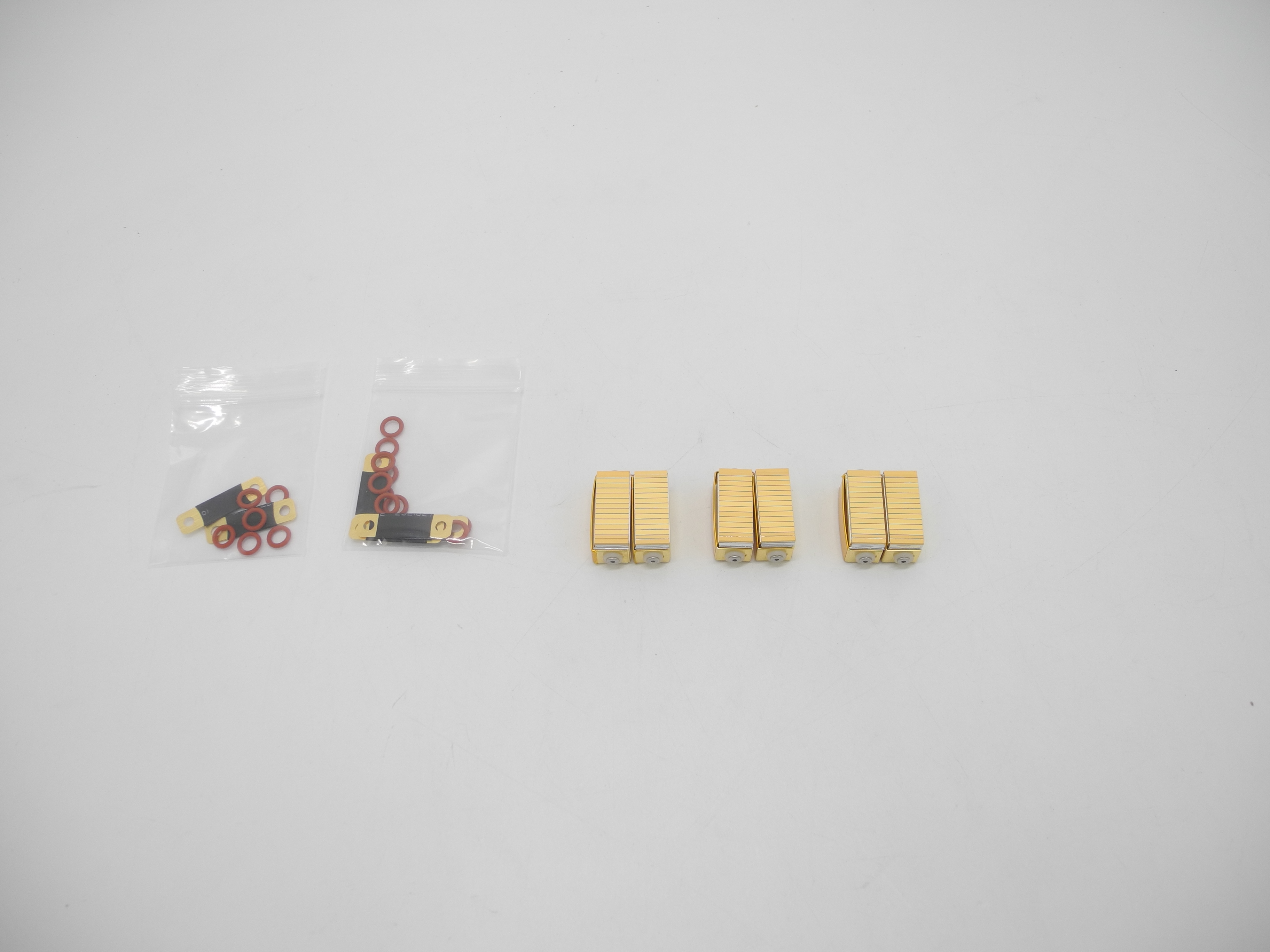

Three C1054 diode laser stacks photographed together before shipment

Documented shipment evidence

A real three-unit batch

The batch overview is linked to a March 2025 commercial order for three C1054 units. The public page intentionally omits the customer identity, address, contact details, payment information, internal costs and unit serial numbers.

  • Model and SKU match the order record.
  • Quantity in the photograph matches the three-unit line item.
  • Close-up serial photographs remain in the private evidence archive only.

Configuration summary

Quote the exact C1054 build

Model
LT-00HH002400N
SG SKU
C1054
Optical power
2400 W
Wavelength
808 nm
Bars
24 × 100 W
Arrangement
Double row · 12 + 12
Bar pitch
1.0 mm, source-listed
Commercial term
EXW reference quote
Before purchase

Send your handle cavity drawing, electrical drive conditions, cooling design and target application. Mechanical fit, operating compatibility, chip source and final commercial terms require order confirmation.
