DUAL-WAVELENGTH DIODE LASER
One platform with 980 nm and 1470 nm channels, an 8-inch touchscreen and application-specific fibers, tips and handpieces. Available in seven housing designs with OEM interface branding.
For trained professionals. Intended uses and regulatory clearance vary by market.

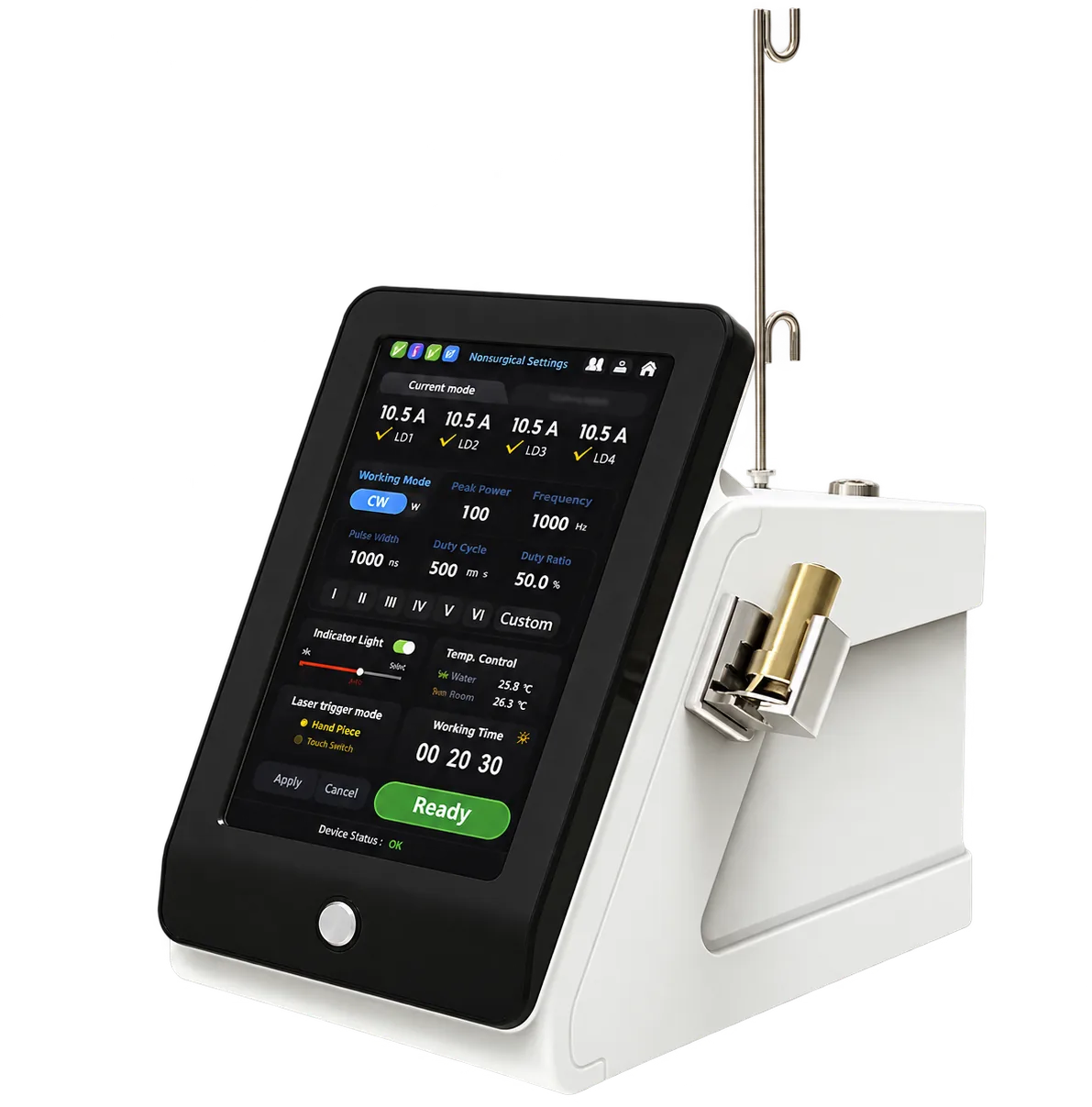

The HANGZHOU SG 980 nm + 1470 nm platform combines two diode laser wavelengths in one system. Each channel can be used independently or simultaneously, in continuous-wave or pulsed mode, and is delivered through 400 μm or 600 μm fibers. Fibers, tips, handpieces and accessory kits are selected according to the intended procedure, so one base system can be configured for different specialties. The integrated design includes touchscreen control, fiber output, footswitch and accessory ports, and temperature and status monitoring.
Tissue effects and outcomes depend on output settings, fiber selection, technique and tissue conditions; they are not guaranteed. Intended uses, indications and regulatory clearance vary by market; confirm the approved status for your country before purchase or clinical use. The system and its accessories are intended for use only by trained professionals following the instructions for use.
| Wavelength | 980 nm + 1470 nm diode laser |
|---|---|
| Power options | 980 nm: 20 W / 30 W 1470 nm: 3–30 W |
| Output modes | CW / pulsed, duty cycle 10–100% Independent / simultaneous channels |
| Pulse settings | 1–60 Hz, pulse width 15–60 ms Pulse width adjustment in 1 ms steps |
| Fiber system | Core 400 / 600 μm, NA 0.22 Length 3 m (±0.2 m) |
| Display & recall | 8-inch multilingual touchscreen Presets + QR-code settings |
| Interface languages | Chinese, English, Spanish, German, French, Russian |
| Power & cooling | 100–240 V AC, 50/60 Hz TEC + air cooling |
| Options | OEM interface branding Dedicated handpieces |
Specifications as listed in the HANGZHOU SG product catalog (8-inch dual-wavelength configuration). Confirm the exact configuration in your quotation.

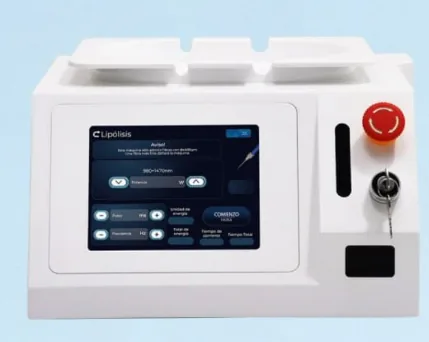

Seven housing designs are available for the same dual-wavelength configuration.

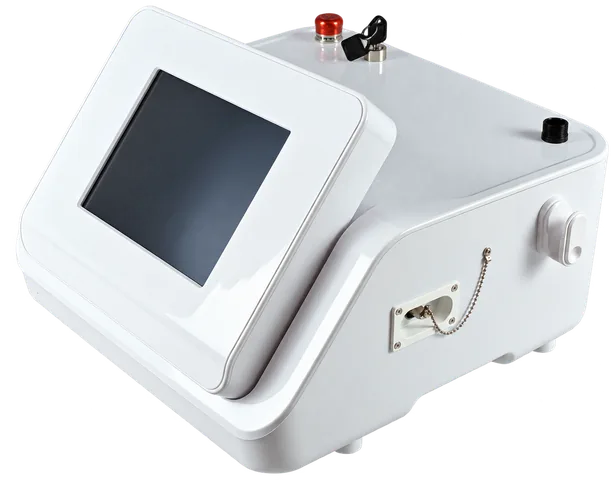

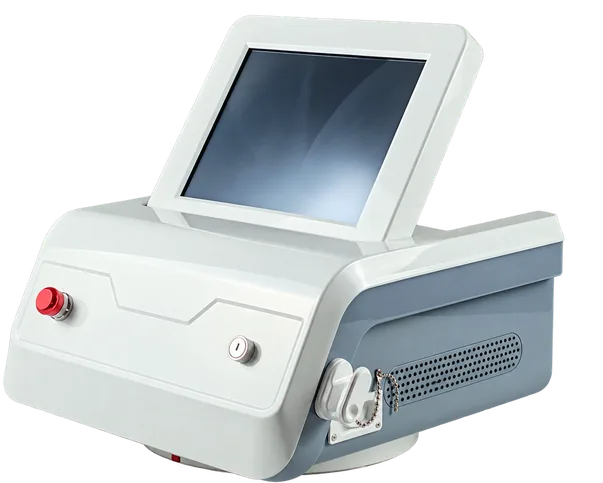

Rounded housing, tilted screen.

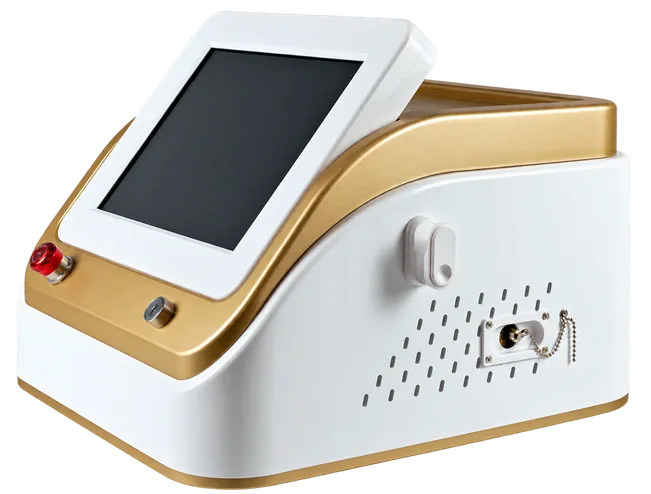

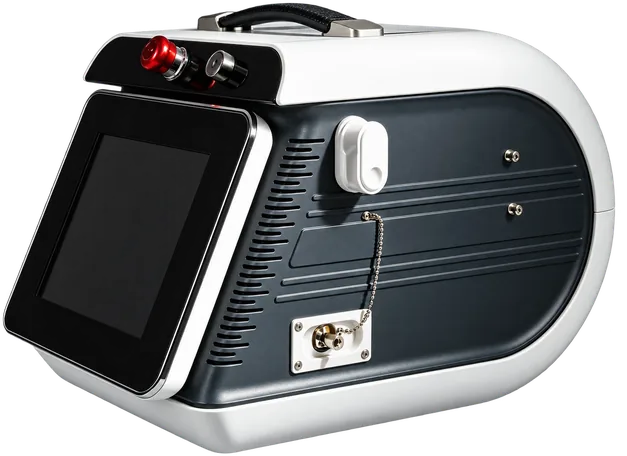

Two-tone housing, side fiber port.
Raised screen, side grips.
Top handle, dark side panels.

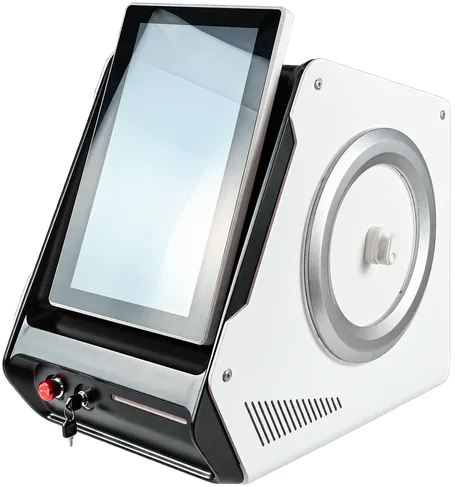

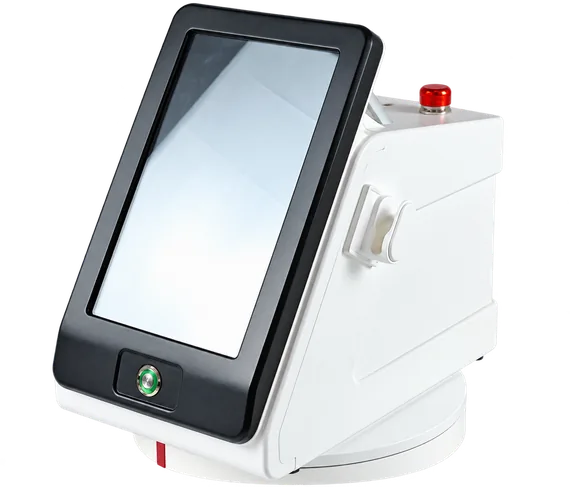

Large portrait screen, circular side detail.
Slim body, front power switch.
Landscape screen, top accessory tray.

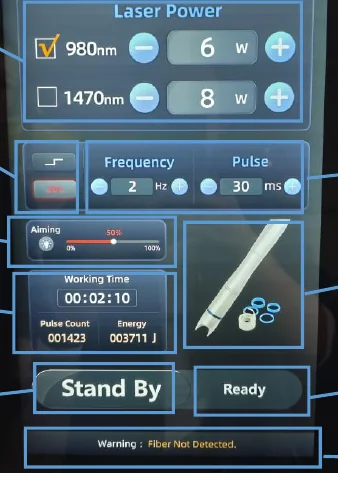

Interface detail; the final screen layout depends on software version and branding.
Independent or simultaneous 980 nm / 1470 nm channels.
Chinese, English, Spanish, German, French, Russian.
Presets and QR-code settings; OEM interface branding.
Temperature and fiber connection · wavelength, power and CW / pulsed mode · aiming beam, frequency and pulse width · time, pulse count and energy · Standby / Ready.
Match core diameter, connector, length and tip style to the intended procedure.
Delivery fiber with metal tips and focusing rings.

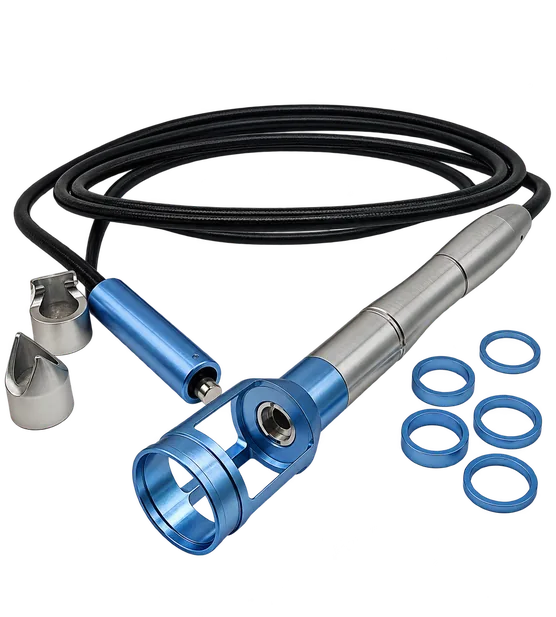

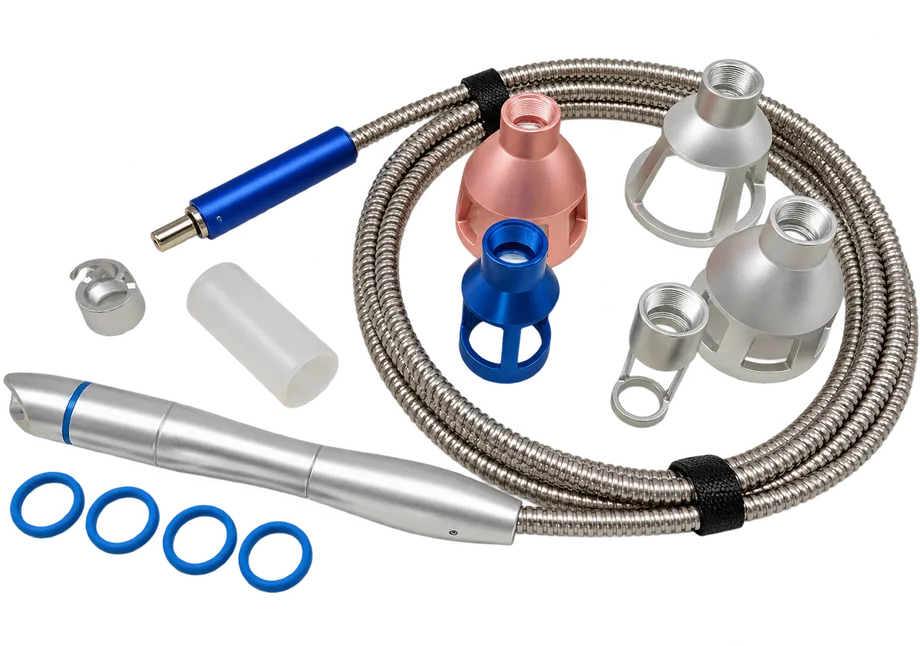

Handpiece, metal tips, caps and focusing rings shown with the armored delivery fiber.

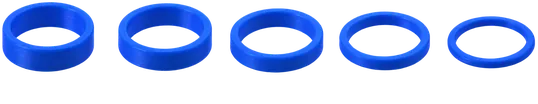

| Ring thickness (mm) | 4.75 | 3.85 | 3.0 | 2.0 | 1.45 |
|---|---|---|---|---|---|
| Spot (mm)* | 0.5 | 0.8 | 1.0 | 1.2 | 1.4 |
*Reference spot sizes under specified test conditions. Actual spot size varies with working distance, mode and settings.

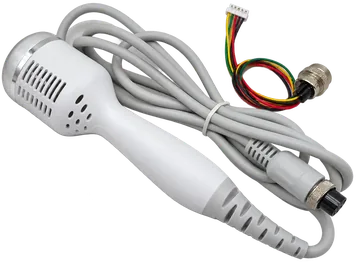

Contact cooling activated by switch. Requires a compatible port on the system.

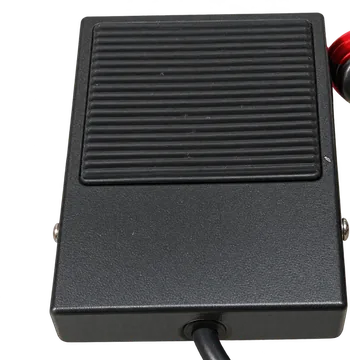

Foot-operated laser output control.

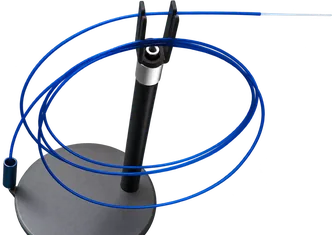

Holder for bare-fiber and therapy-handpiece fibers.

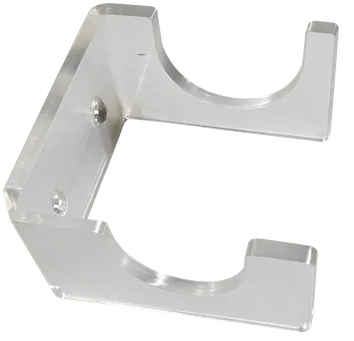

Model-specific mounting for handpiece storage.
Cuts bare fiber to prepare the end face.
Removes the jacket or coating. Match the fiber specification.
For cleaning fiber end faces. Inspect after cleaning.
Operator eyewear. Select eyewear rated for 980 nm and 1470 nm at the required protection level.

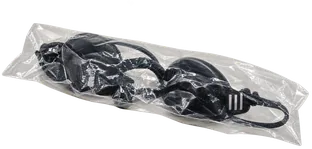

Choose protection suitable for the wavelength and the procedure setting.
End-face inspection tools and cleaning tape are available separately.

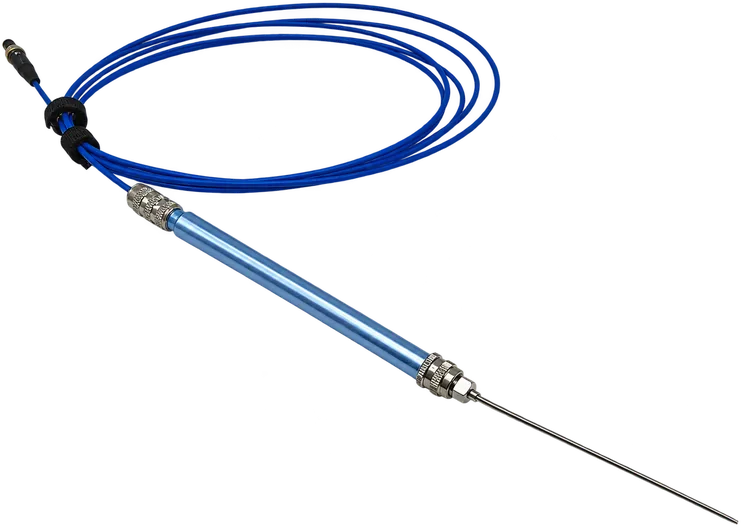

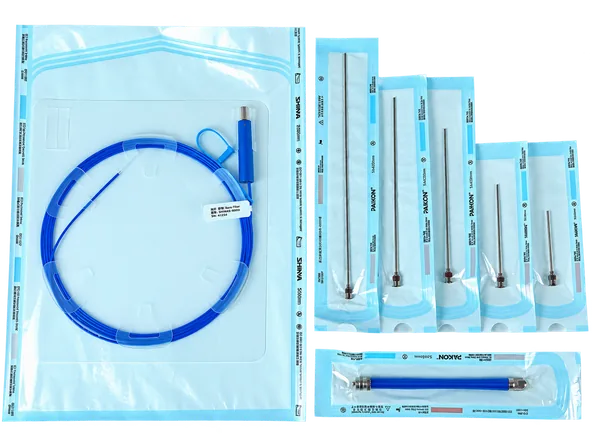

Bare fiber, blue handpiece and five cannulas of different lengths. Accessory kit for use in laser-assisted lipolysis procedures by trained professionals.

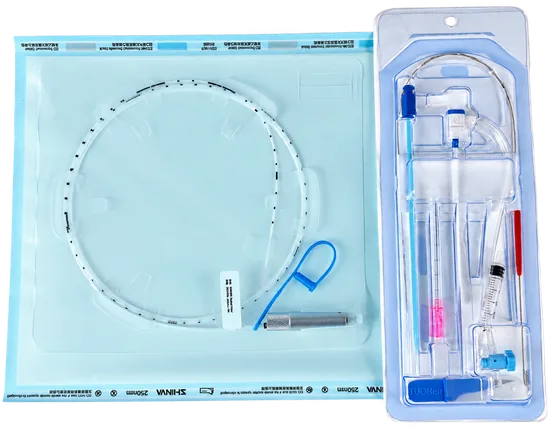

Radial fiber and introducer sheath components. Accessory kit for use in endovenous laser procedures by trained professionals.

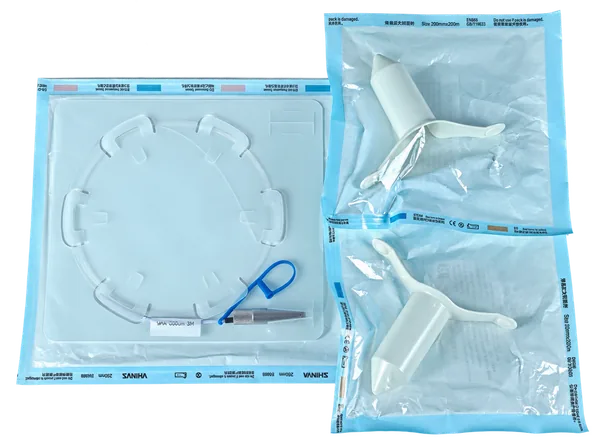

Conical fiber and anoscope components. Accessory kit for use in hemorrhoid procedures by trained professionals.

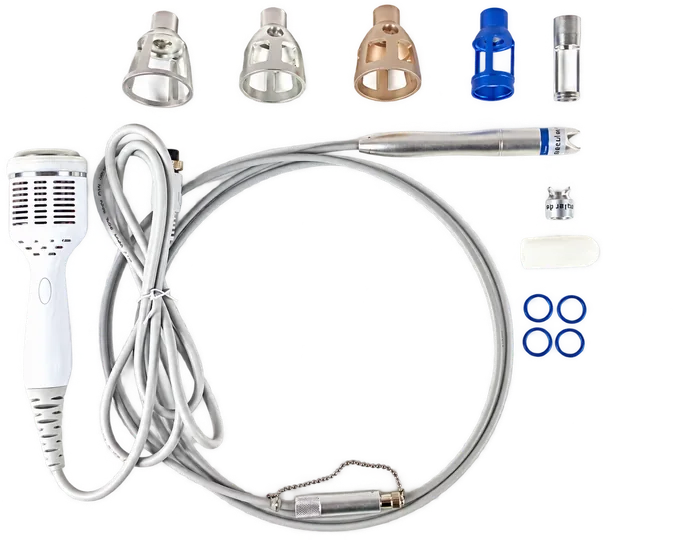

Handpiece with five interchangeable tips; focusing rings and a cooling handpiece are available as options. For use in vascular and laser-therapy procedures by trained professionals.

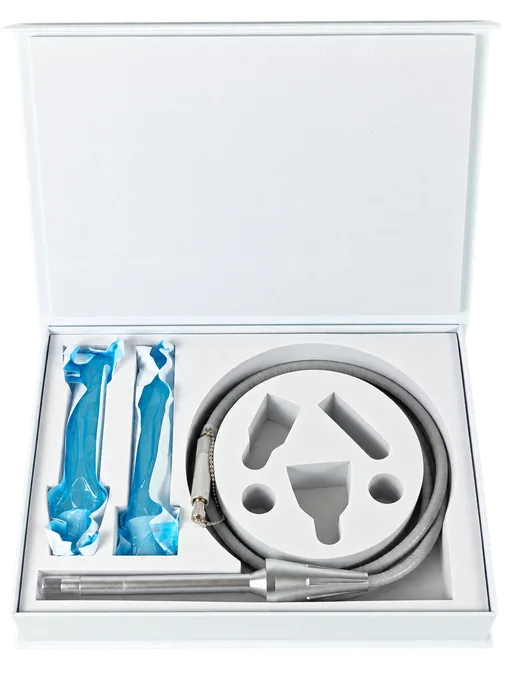

Flexible line, metal handpiece and individually packaged tips in a dedicated storage case. For use in gynecological procedures by trained professionals.
Optional specialty accessories. Kit contents and availability depend on the destination market.
Application-specific fibers, tips and handpieces are available for the procedure areas below. Each accessory is intended for use by trained professionals; availability of each application depends on the market and its regulatory status.
Tissue effects and procedure outcomes depend on output settings, fiber and tip selection, technique and tissue conditions. Intended uses, indications and regulatory clearance vary by market; confirm the approved status for your country before purchase or clinical use. The system and its accessories are intended for use only by trained professionals following the instructions for use.
Check the system, fibers and protective equipment before each use.
Check end faces, fiber integrity and connections before each use.
Follow the minimum bend radius. Do not pull, crush or step on fibers.
Monitor temperature and status. Stop use if an alarm occurs.
An independent control interrupts laser output.
Match wavelength, power, protection rating and local requirements.
For trained professionals following the instructions for use and locally approved indications. Accessories are application-specific.
| Application | Specialty and intended procedure scope, subject to the approved status in the destination market. |
|---|---|
| Wavelength & output | Dual wavelengths and software modes. |
| Fibers & tips | Core diameter, connector, length and tip. |
| Accessories | Handpieces, footswitch, cooling and protection. |
| Language & power | Interface, manuals, plugs, voltage and frequency. |
| Market documents | Labels, instructions for use and product documentation for the destination market. |
| OEM branding | OEM interface branding on the touchscreen; presets and QR-code settings. |
Tell us the application, destination market and preferred housing, and SG will prepare a configuration with fibers, specialty accessories and market documentation.
